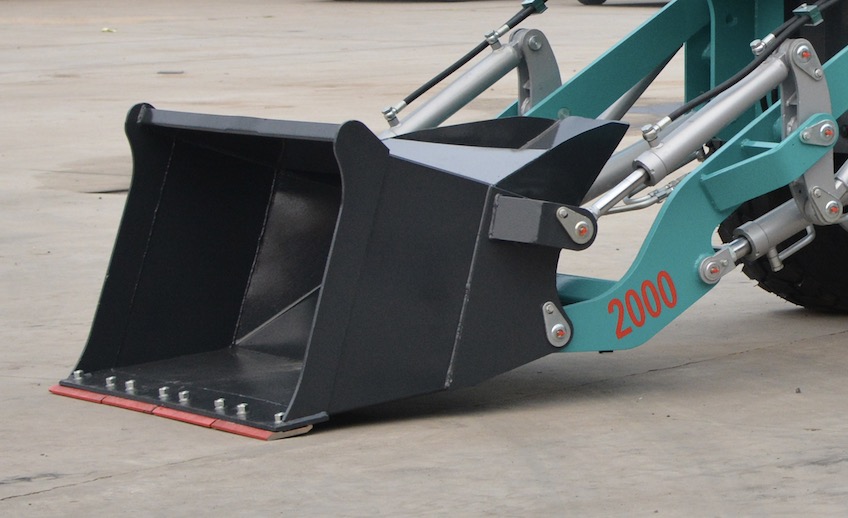

The large-capacity bucket and is equipped with a non-welded blade as standard, which is easy to replace and reduces the resistance to shoveling.

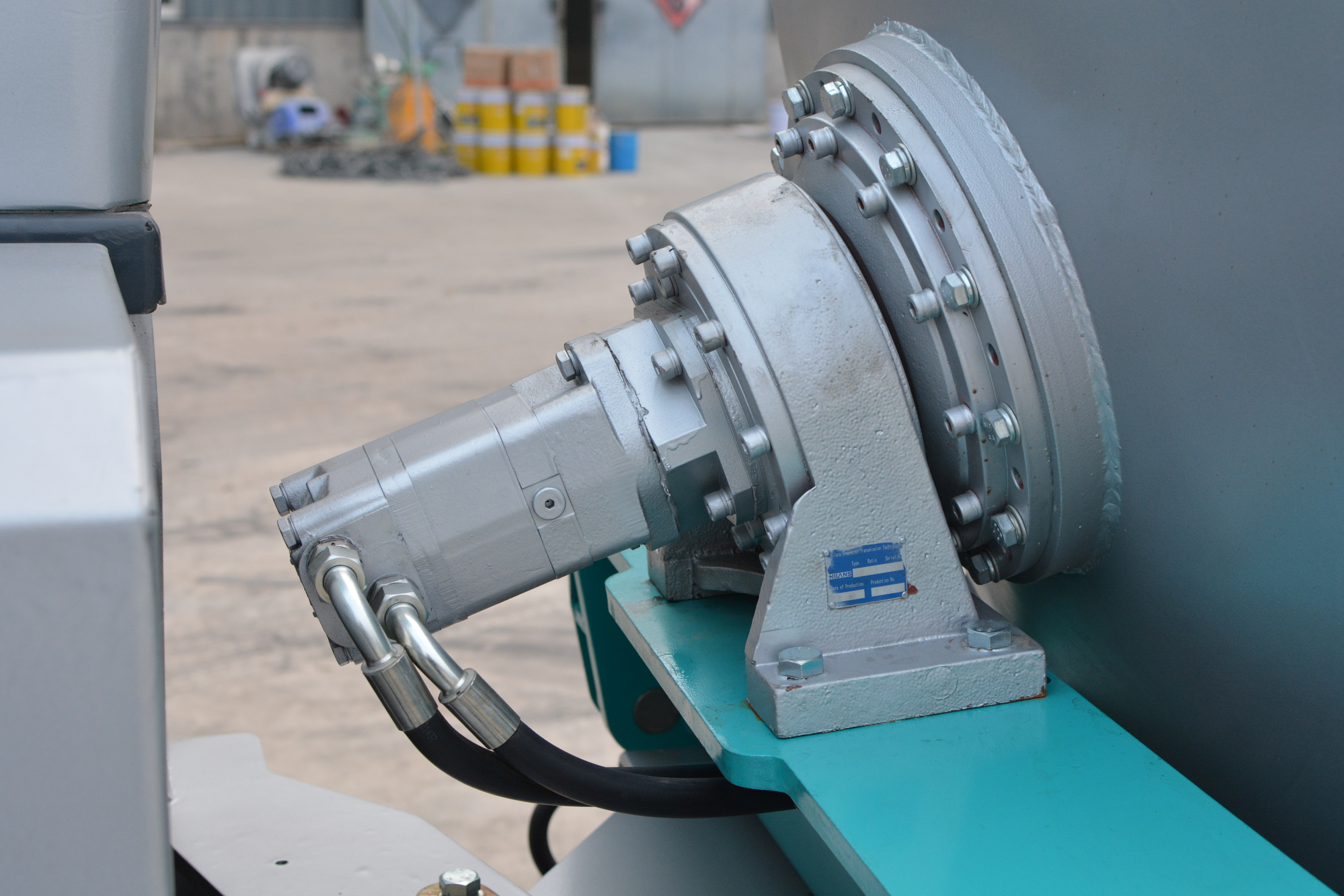

High-quality brand hydraulic motor and reducer,, stable output speed. The tank body rotates faster than the ordinary ones on the market at idle speed.

The entire vehicle's oil cylinder and pipelines are made of high-strength materials, with excellent pressure resistance and durability, and can adapt to high-intensity working environments, reducing the frequency of failures and repairs.

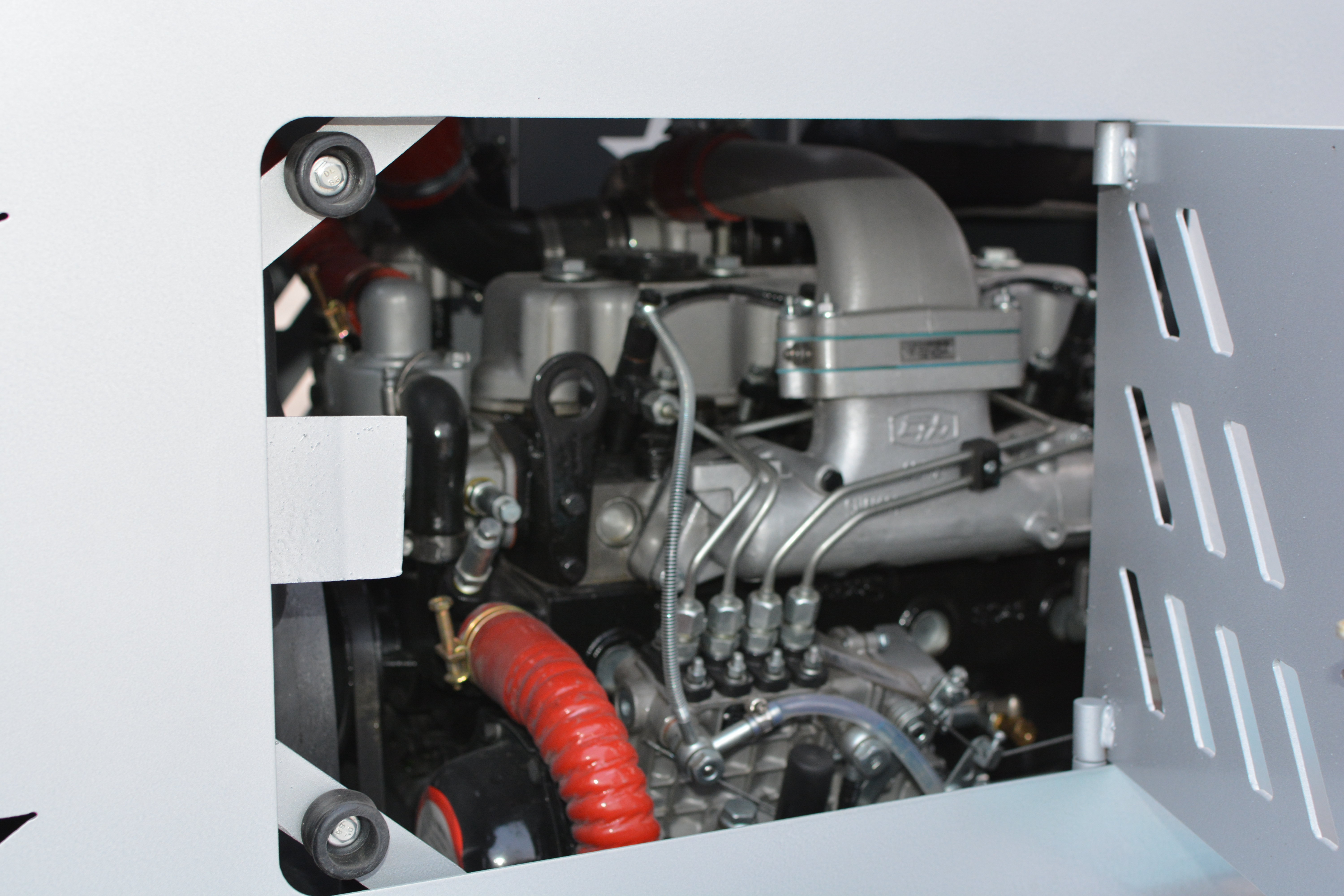

Famous brand engine, strong power.

Optional EU5 emission standard engine.

Color and logo can be customized.

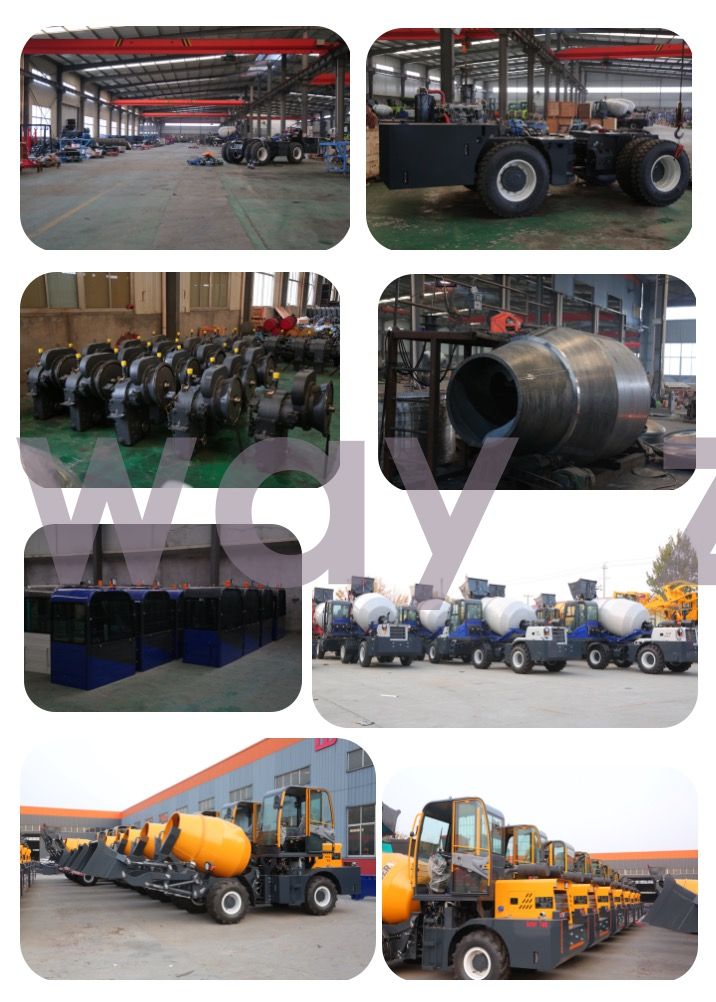

WORKSHOP

Here’s a structured summary of the model 1500 Concrete Mixer Truck specifications based on the provided data:

Engine
• Brand: YUNNEI

• Model: 490

• Type: In-line, 4-Cylinder, Turbocharged, Water-Cooled

• Rated Power: 55 kW (75 HP) @ 2400 rpm

Chassis & Transmission
• Transmission: 265 Two-piece, 4 Forward + 4 Reverse gears

• Axle: Small-size wheel-side reducer driving axle

• Tire Size: 23.5/16

Loading Shovel & Chute
• Shovel Loading Times per Full Drum: ~3 times

Water System
• Water Tank Capacity: 500 L

Vehicle Performance
• Max Driving Speed: 30 km/h

• Operating Weight: 4500 kg

• Max Payload: 3600 kg

• Max Gross Weight: 7800 kg

• Overall Dimensions (L×W×H): 5350 × 1800 × 2900 mm

Service Refill Capacities
• Fuel Tank: 65 L

• Hydraulic System: 65 L

• Engine Oil: 16 L

Mixing Drum
• Mixing Volume: 1.5 m³

• Geometrical Volume: 1.8 m³

• Concrete Output:

• Per Batch: 1.5 m³

• Hourly Capacity: 6 m³

• Drum Rotating Speed: 18 RPM

Key Features
• Designed for efficient concrete mixing and transport with a 6 m³/hour output.

• Robust turbocharged diesel engine (YUNNEI 490) for reliable performance.

• High-capacity water tank (500 L) for consistent mixing.

• Compact dimensions and 30 km/h max speed suitable for urban and construction sites.

Warranty

♦ 12-month warranty.

Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.

After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
