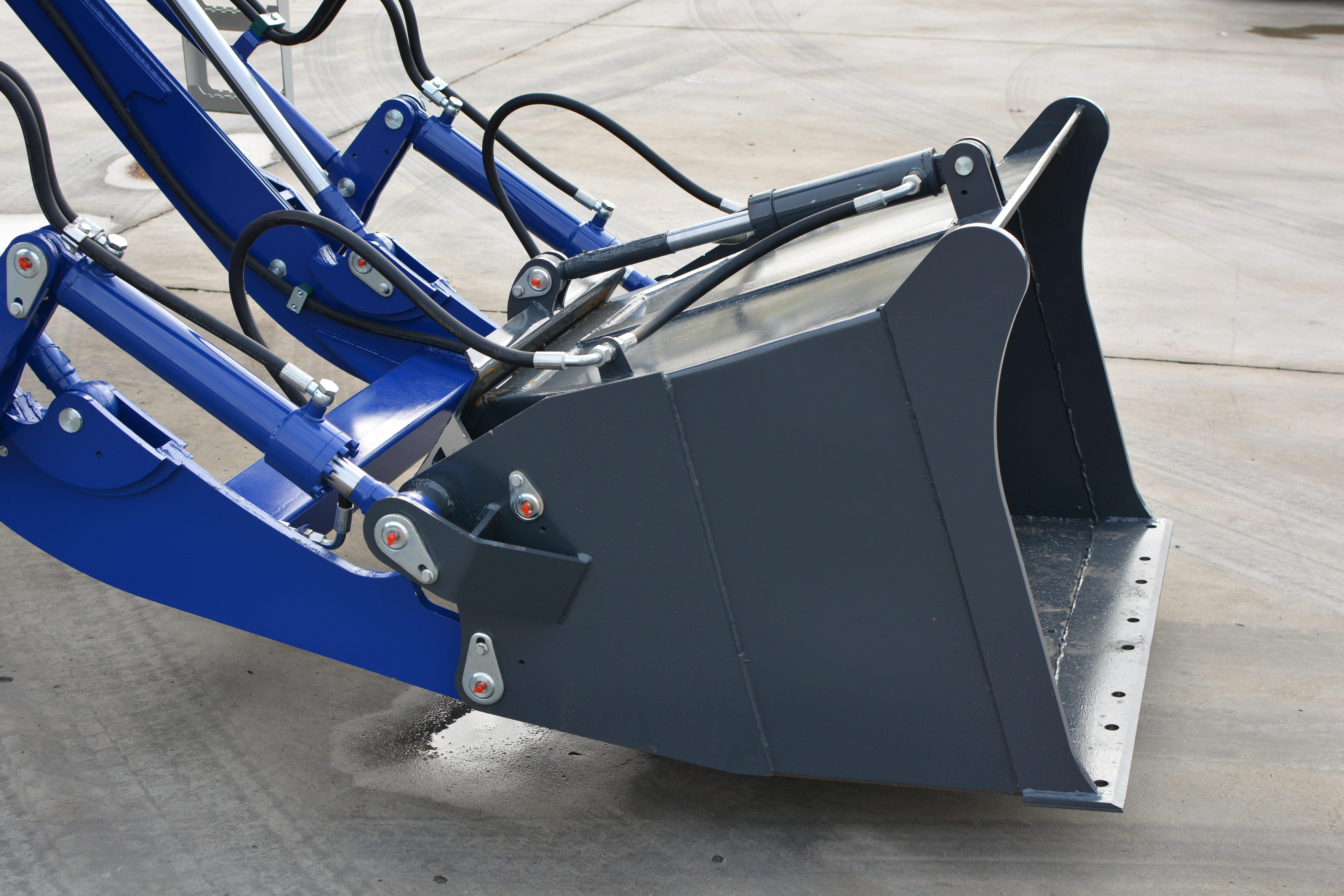

The large-capacity bucket and is equipped with a non-welded blade as standard, which is easy to replace and reduces the resistance to shoveling.

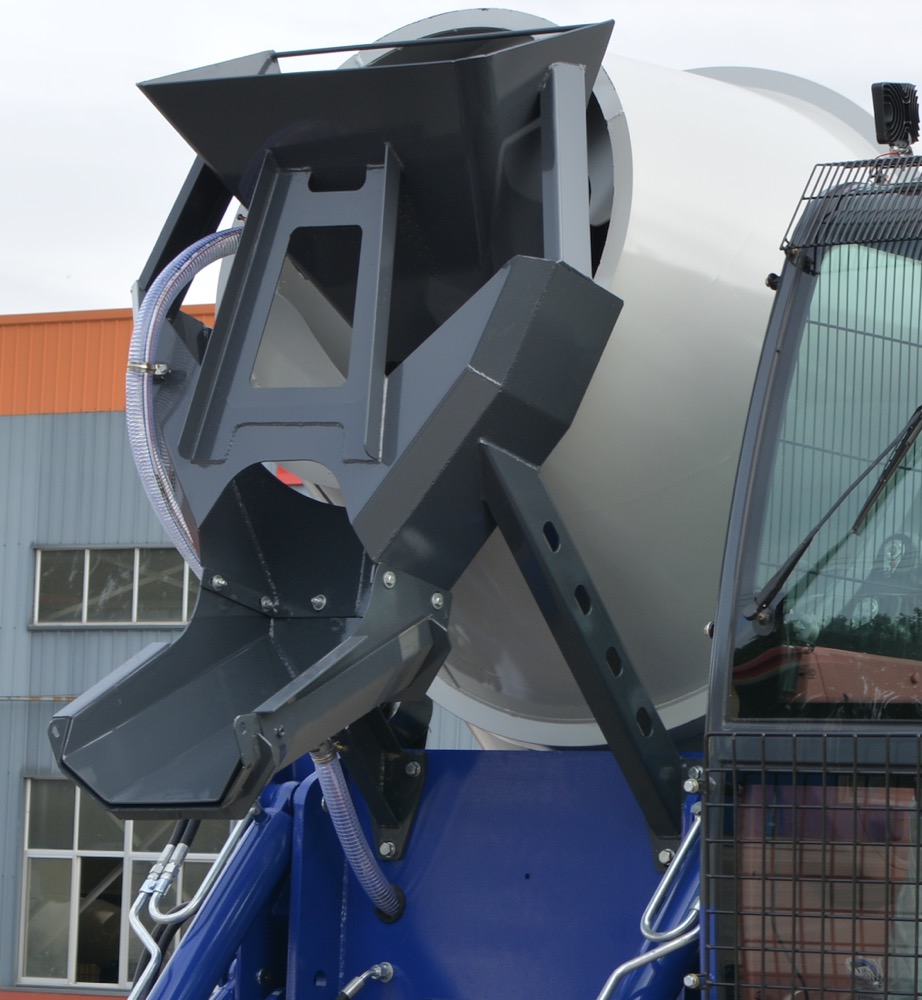

The material discharge baffle adopts the material cutting method to control the material discharge amount.

The secondary material receiving method has fast material discharge speed, no material blockage (can be equipped with a vibrator), less dust, and can be shaken. Misoperation will not damage the machine.

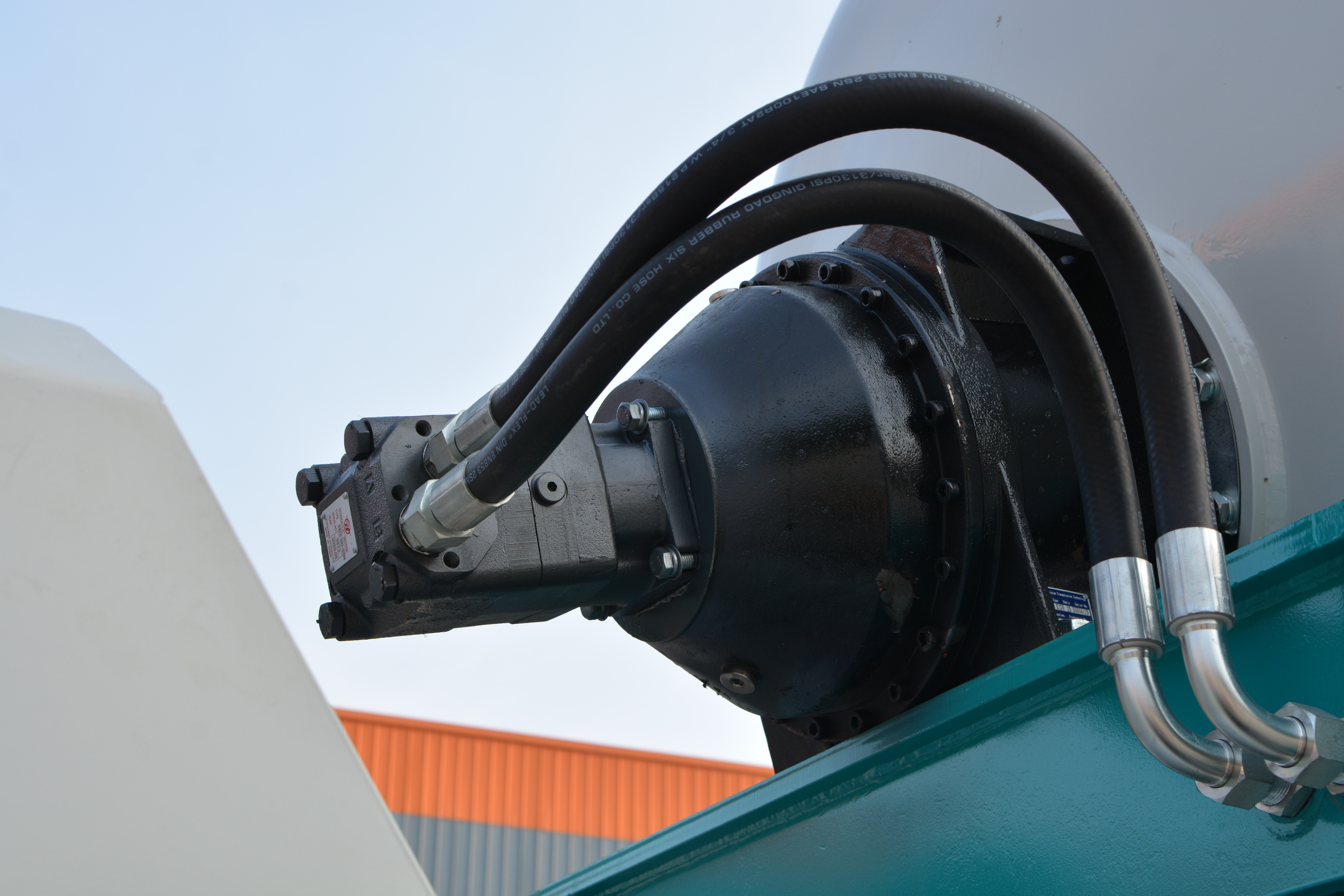

High-quality brand hydraulic motor and reducer,, stable output speed. The tank body rotates faster than the ordinary ones on the market at idle speed.

The entire vehicle's oil cylinder and pipelines are made of high-strength materials, with excellent pressure resistance and durability, and can adapt to high-intensity working environments, reducing the frequency of failures and repairs.

Color and logo can be customized.

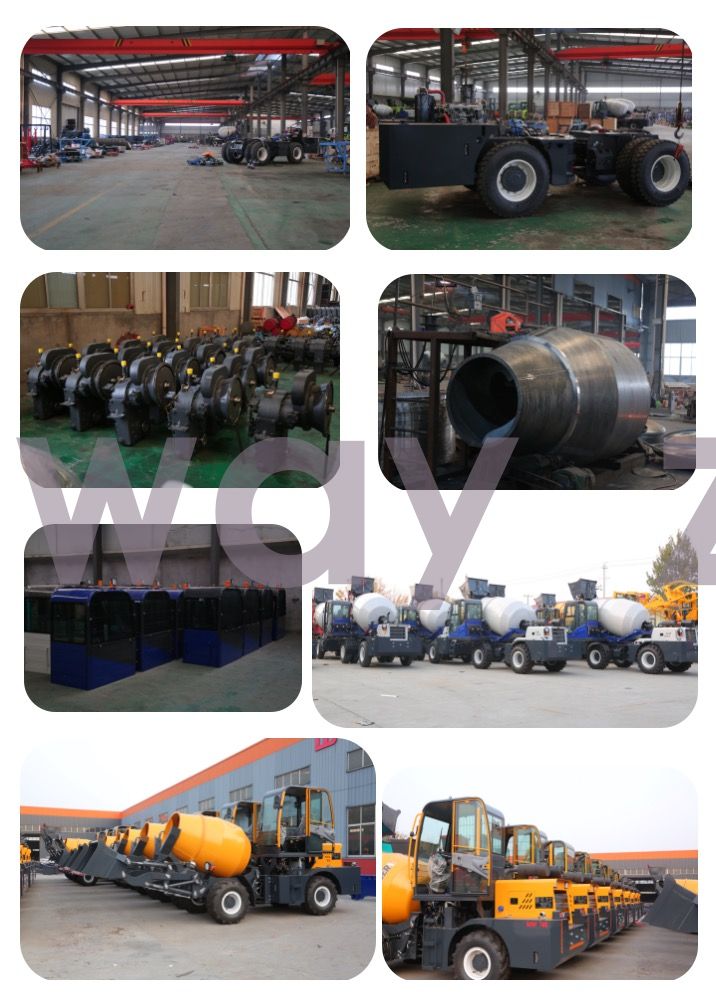

WORKSHOP

Here's a summarized technical specification table based on the provided parameters for the model 2600 concrete mixer truck:

YUCHAI 4102 (Supercharged) Concrete Mixer Truck Specifications

Engine & Performance
• Model: YUCHAI 4102 (Supercharged)

• Rated Power: 78 kW / 2400 rpm

• Drive Type: Output rotor

• Driving/Steering: 4WD, articulated steering

• Gears: 4 Forward, 4 Backward

• Max Speed: 30 km/h

• Gradient Capacity: 30°

Chassis & Body
• Driving Axle: Special wheel edge deceleration bridge (10T capacity)

• Tire Size: 1670-20

• Operating Weight: 6,500 kg

• Dimensions (L×W×H): 5,480 × 2,700 × 3,000 mm

Fluid Capacities
• Fuel Tank: 115 L

• Hydraulic System: 115 L

• Water Tank: 590 L

Mixing Drum
• Mixing Volume: 2.6 m³

• Geometrical Volume: 3.5 m³

• Concrete Output:

• Per Batch: 2.6 m³

• Hourly Output: 10.4 m³ (assuming 4 batches/hour)

• Drum Rotation Speed: 16 rpm

Key Features
• Articulated 4WD for off-road maneuverability.

• High-capacity water tank (590L) for extended operation.

• Efficient drum rotation (16 rpm) ensures consistent mixing.

• Compact yet robust design suitable for rugged environments.

Warranty

♦ 12-month warranty.

Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.

After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
