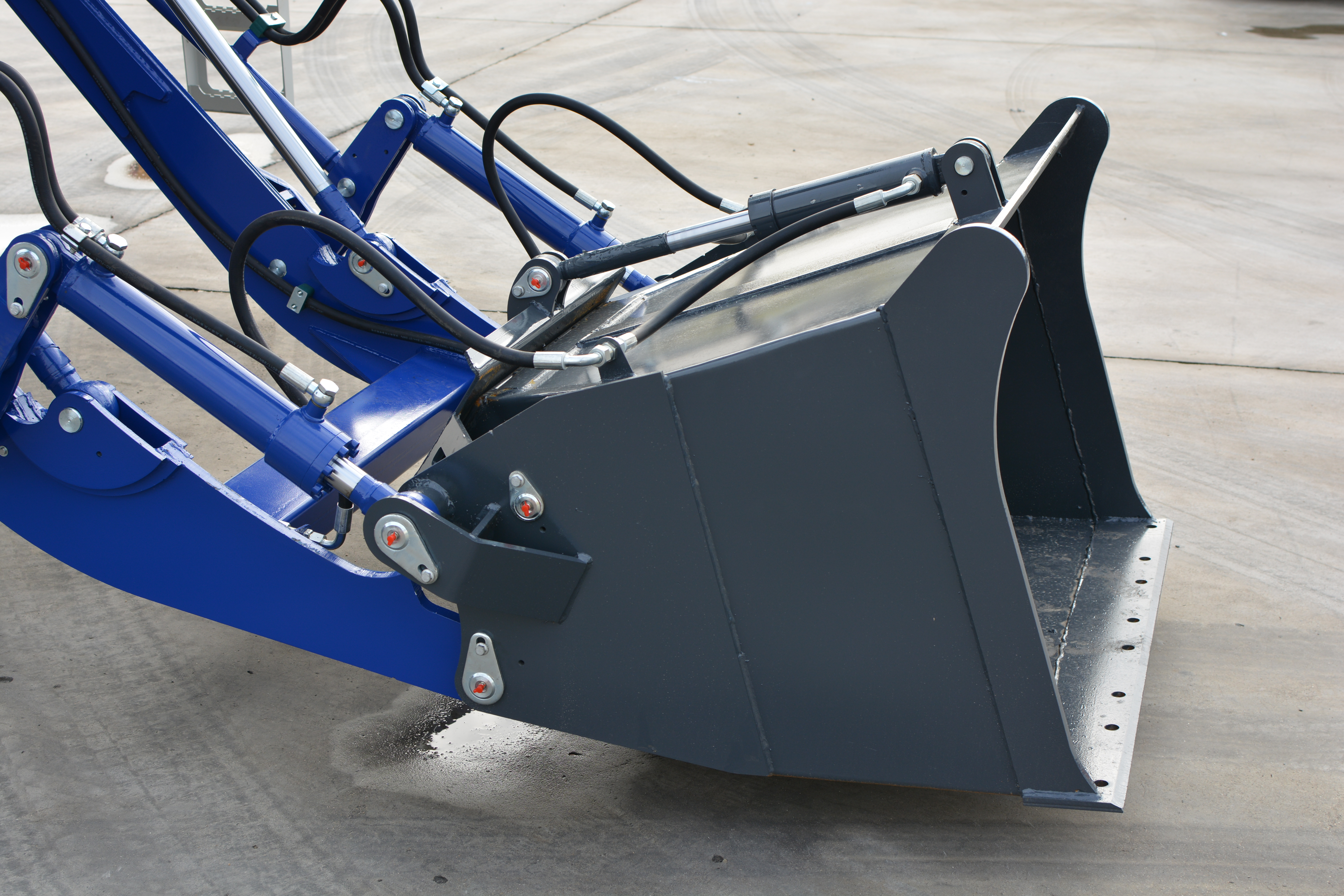

The large-capacity bucket and is equipped with a non-welded blade as standard, which is easy to replace and reduces the resistance to shoveling.

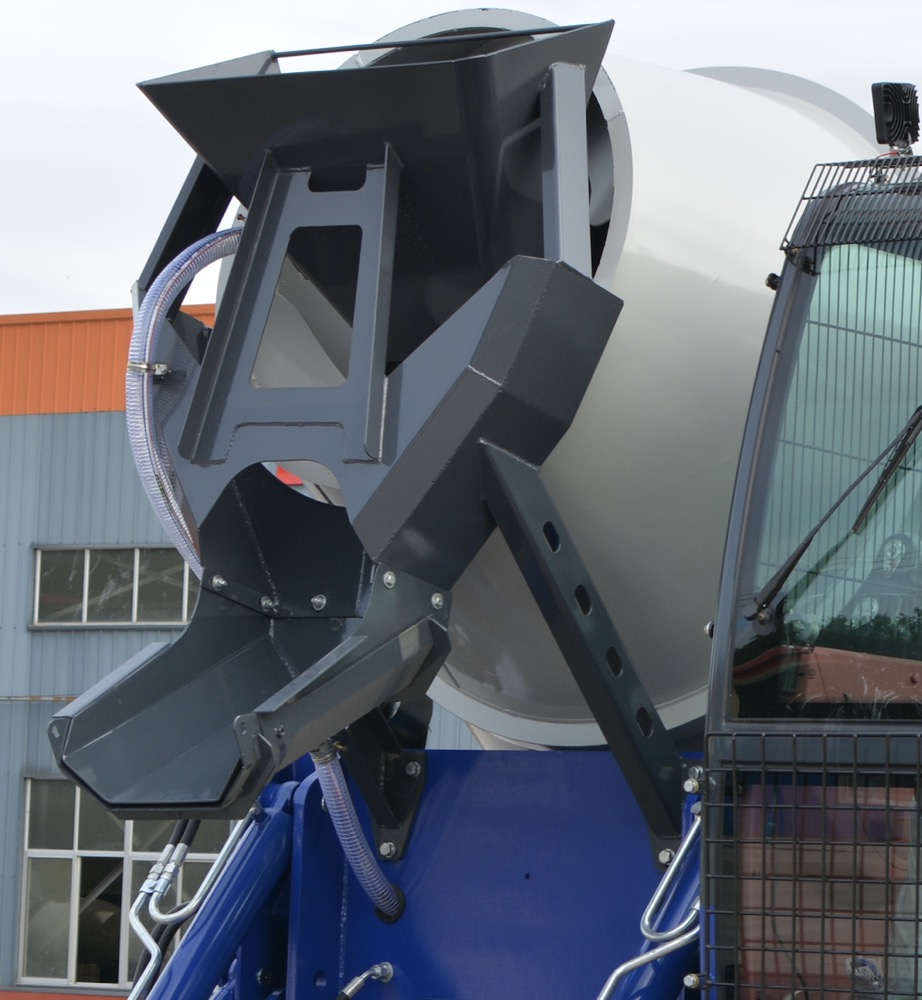

The material discharge baffle adopts the material cutting method to control the material discharge amount.

The secondary material receiving method has fast material discharge speed, no material blockage (can be equipped with a vibrator), less dust, and can be shaken. Misoperation will not damage the machine.

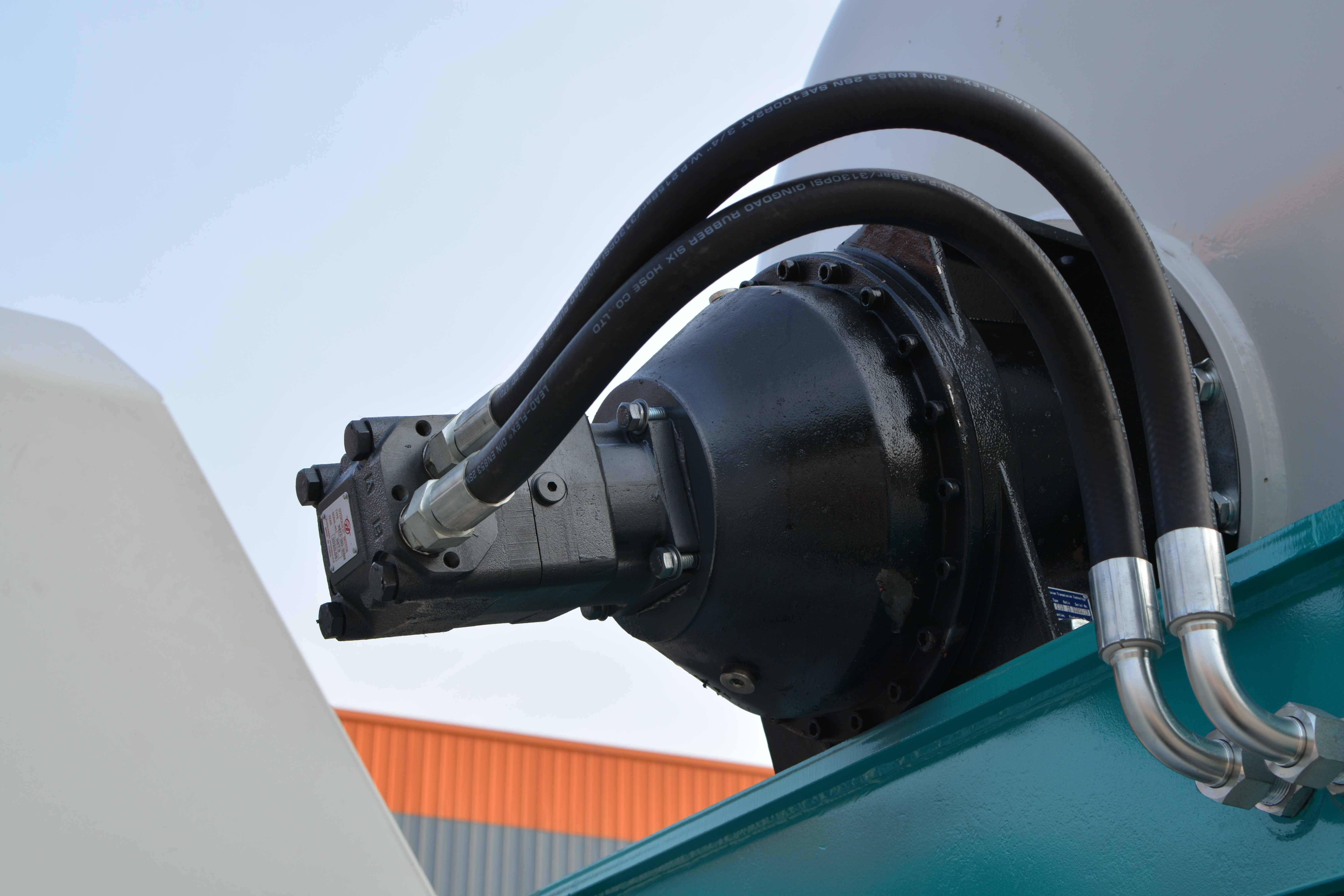

High-quality brand hydraulic motor and reducer,, stable output speed. The tank body rotates faster than the ordinary ones on the market at idle speed.

The entire vehicle's oil cylinder and pipelines are made of high-strength materials, with excellent pressure resistance and durability, and can adapt to high-intensity working environments, reducing the frequency of failures and repairs.

Color and logo can be customized.

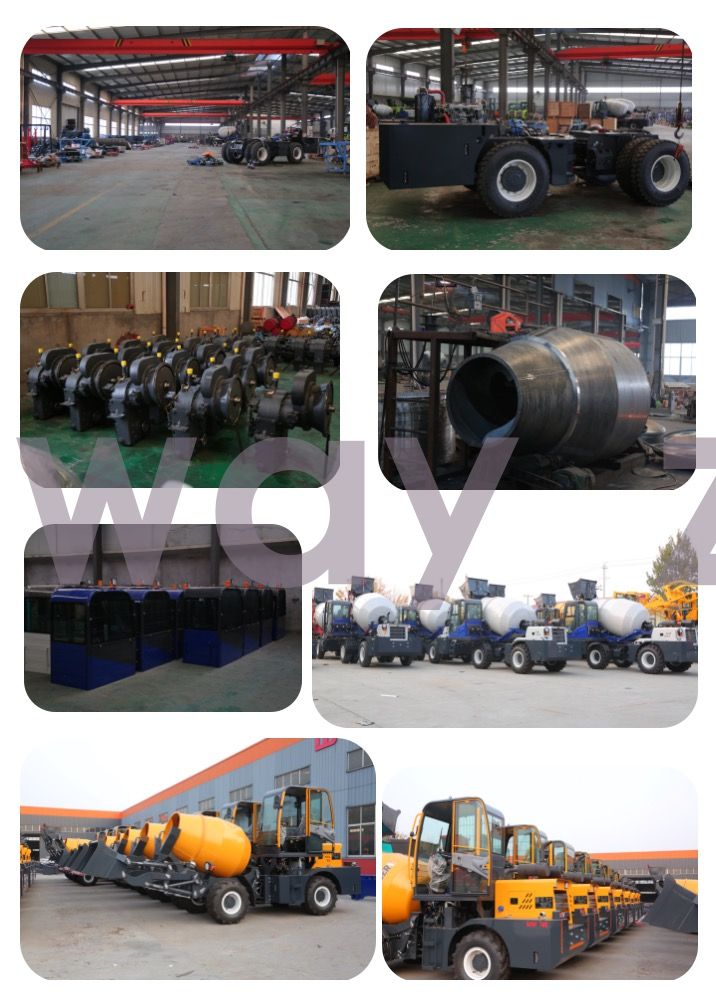

WORKSHOP

Here is an English technical article based on the provided parameters of the model 3500 vehicle, structured for clarity and readability:

Technical Specifications of YUCHAI 4105 (Supercharged) Concrete Mixer Truck

Power System
• Model: YUCHAI 4105 (Turbocharged)

• Rated Power: 85 kW (116 HP) @ 2400 rpm

• Drive Type: Rotor output

• Drive Axle: ZL-280

• Driving & Steering: 4WD with articulated steering

Performance
• Tires: 12R22.5 steel-wire vacuum tires

• Transmission: 4 forward + 4 reverse gears

• Max. Speed: 30 km/h

• Gradient Capacity: 30°

• Operating Weight: 8500 kg

• Dimensions (L×W×H): 6600 × 2850 × 3350 mm

Water System
• Supply Method: Time relay control

• Tank Capacity: 720 L

Service Capacities
• Fuel Tank: 100 L

• Hydraulic System: 120 L

Mixing Drum
• Mixing Volume: 3.5 m³

• Geometric Volume: 4.5 m³

• Concrete Output: 3.6 m³/batch, 14.4 m³/hour

• Drum Rotation Speed: 16 rpm

Key Features

1. High Power-to-Weight Ratio: The turbocharged engine ensures efficient performance under heavy loads.
2. Articulated Steering: Enhances maneuverability in confined spaces.
3. Large Mixing Capacity: Optimized for continuous concrete production (14.4 m³/hour).
4. Robust Hydraulics: 120L system supports stable operation.

Applications
Ideal for urban construction, road projects, and other scenarios requiring frequent concrete transport and on-site mixing.

Warranty

♦ 12-month warranty.

Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.

After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
