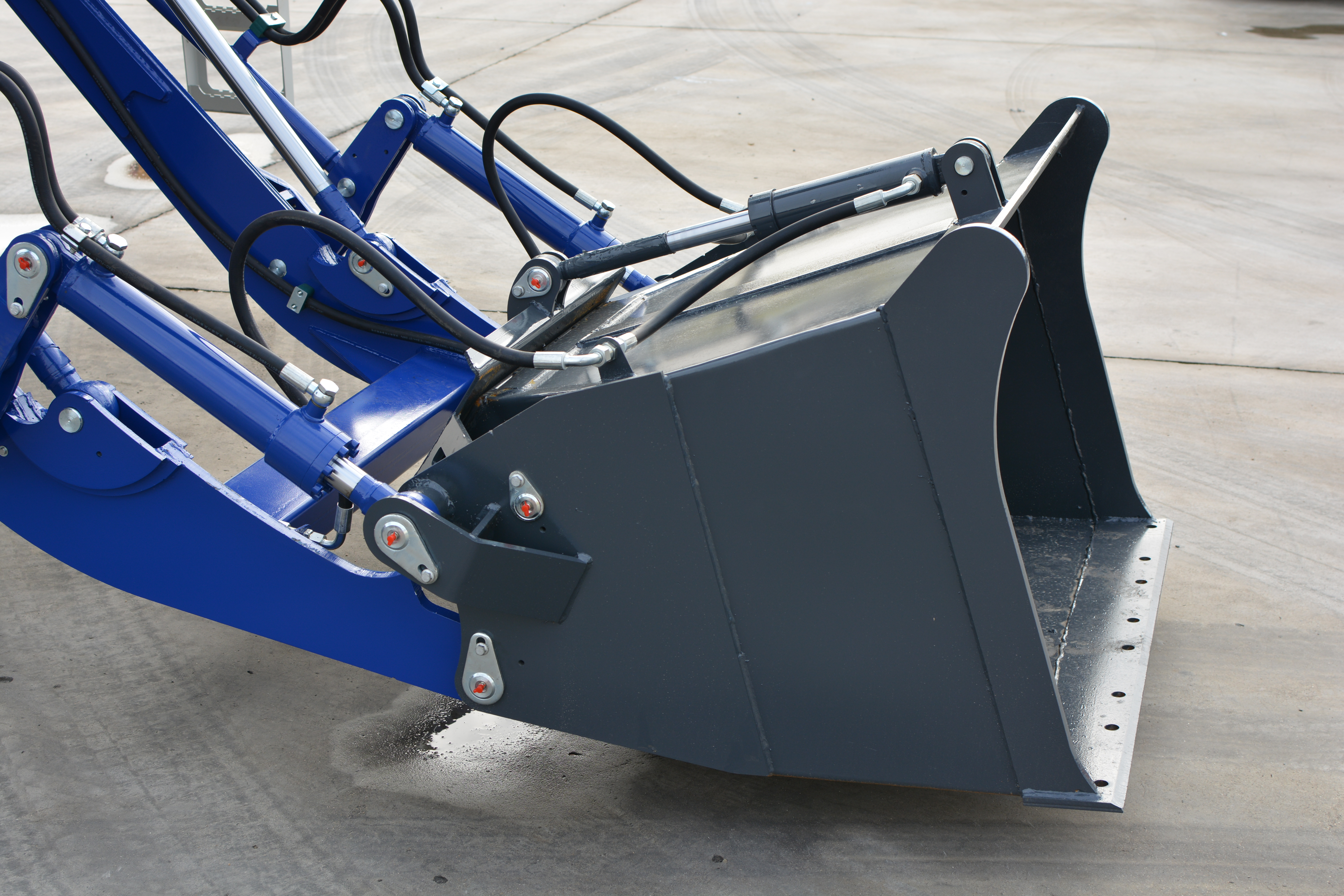

The large-capacity bucket and is equipped with a non-welded blade as standard, which is easy to replace and reduces the resistance to shoveling.

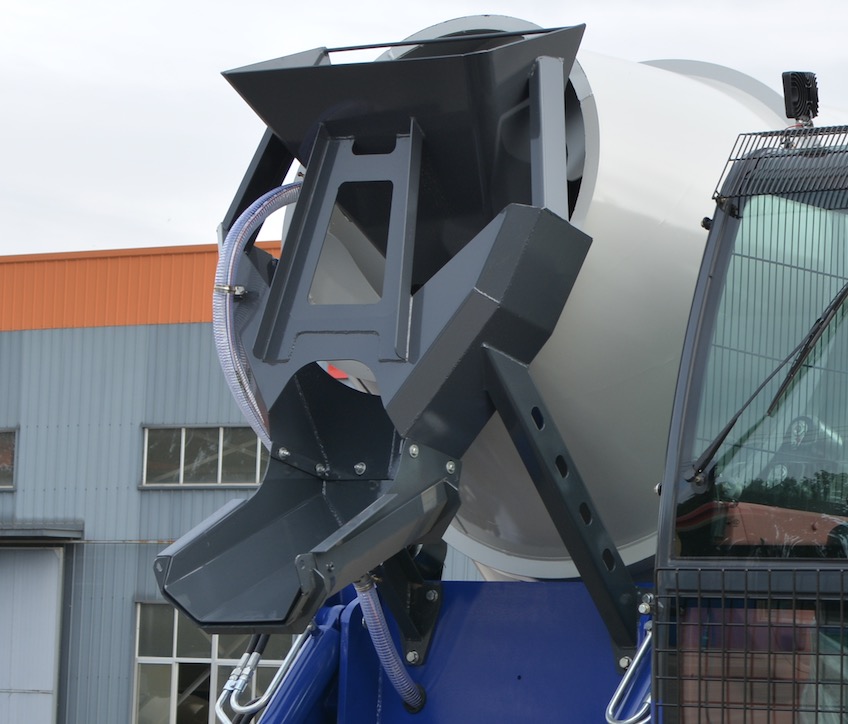

The material discharge baffle adopts the material cutting method to control the material discharge amount.
The secondary material receiving method has fast material discharge speed, no material blockage (can be equipped with a vibrator), less dust, and can be shaken. Misoperation will not damage the machine.

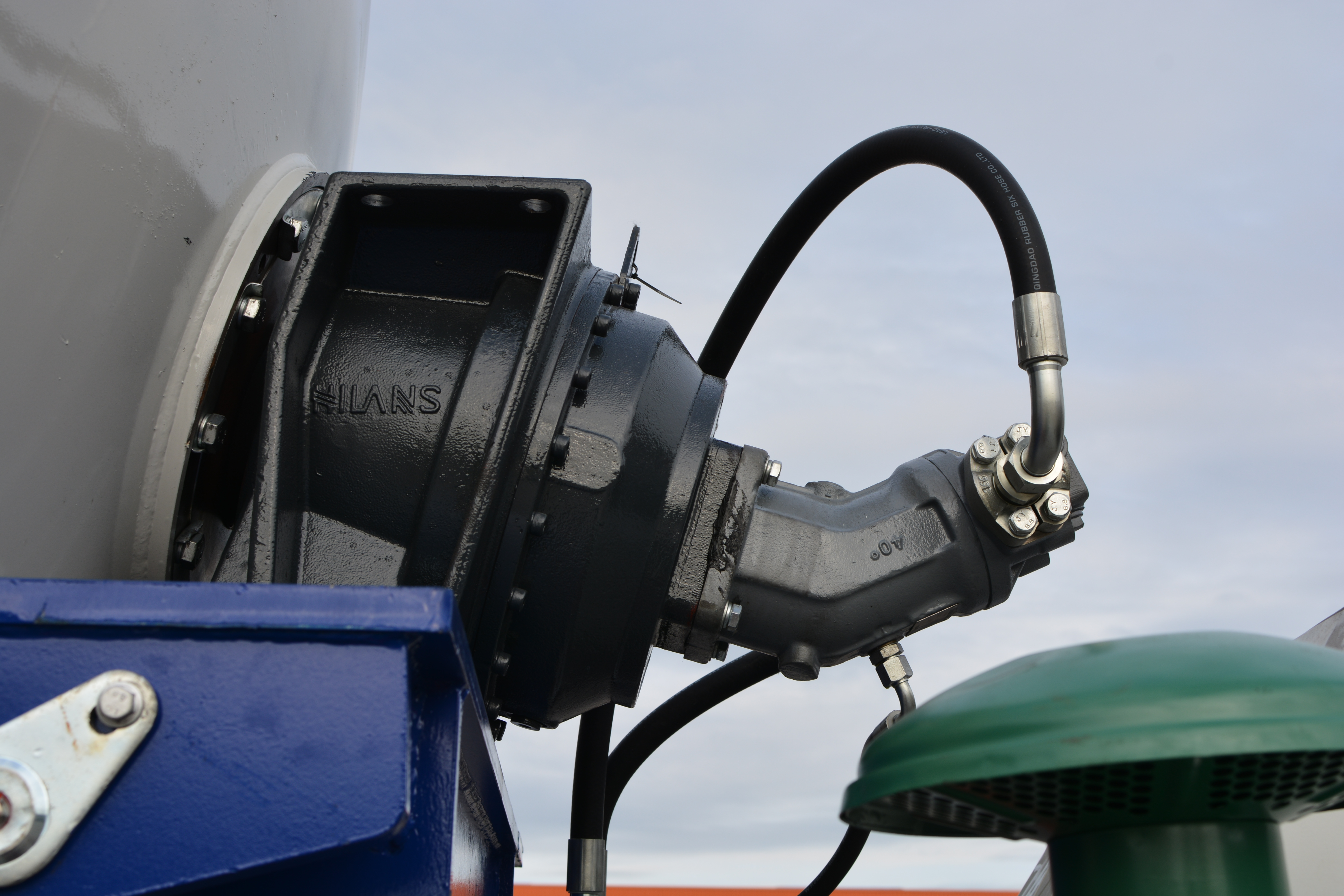

Military reducer, high-quality brand hydraulic motor, stable output speed. The tank body rotates faster than the ordinary ones on the market at idle speed.
The entire vehicle's oil cylinder and pipelines are made of high-strength materials, with excellent pressure resistance and durability, and can adapt to high-intensity working environments, reducing the frequency of failures and repairs.
Color and logo can be customized.

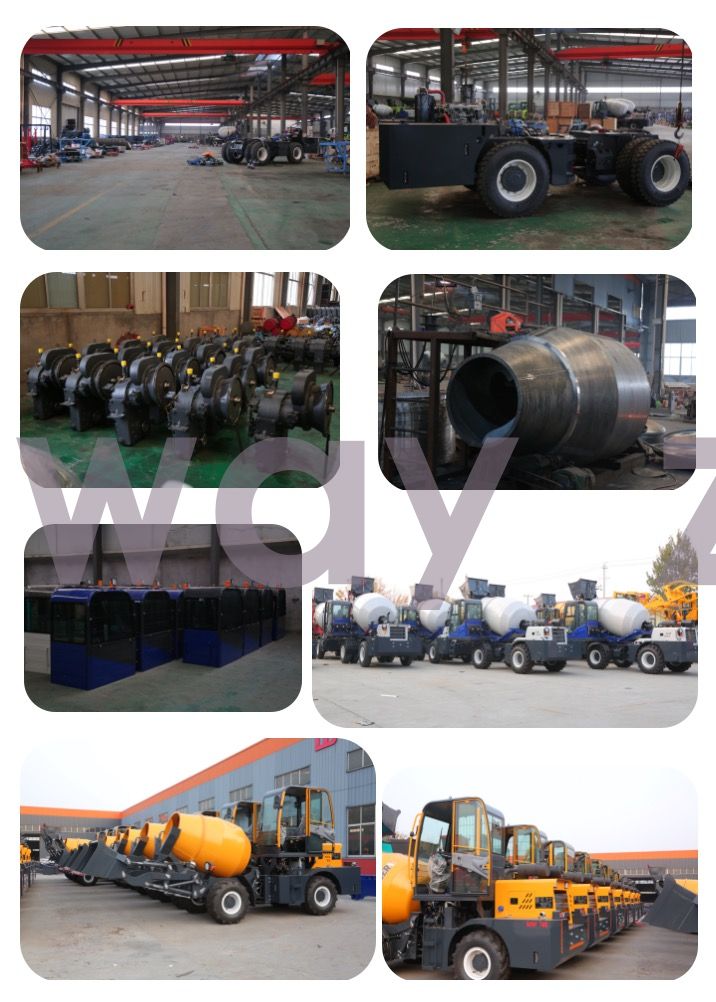

WORKSHOP
Here's a concise summary of the model 4000 Concrete Mixer Truck specifications based on your provided parameters:
Key Specifications
• Engine: YUCHAI 1108 (Supercharged), 92 kW @ 2400 rpm
• Drive/Steering: 4WD, articulated steering
• Transmission: 4 forward + 4 reverse gears
• Max Speed: 35 km/h
• Gradient Capacity: 30°
• Operating Weight: 8,800 kg
• Dimensions (L×W×H): 6,900 × 2,850 × 3,400 mm
Performance
• Water Tank: 900 L
• Fuel Tank: 100 L
• Hydraulic System: 120 L capacity
• Axle: Special wheel edge reduction bridge (20T capacity)
• Tires: 12R22.5 wire tire (vacuum)
Mixing Drum
• Mixing Volume: 4.0 m³ (geometric volume: 5.5 m³)
• Output: 4.0 m³/batch, 16 m³/hour
• Rotation Speed: 16 rpm
Notable Features
• Robust 4WD system for off-road capability.
• High-efficiency drum (16 rpm) for consistent concrete mixing.
• Large water tank (900 L) supports extended operation.
Warranty
♦ 12-month warranty.
Guarantee
♦ Engine and all parts are 100% genuine and certificate is with it.
♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.
♦ Testing is done and results are verified in writing.
After-sales Support
♦ 24/7 service by chat online and phone.
♦ Lifelong and free technical support.
♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.
♦ Free troubleshooting.
