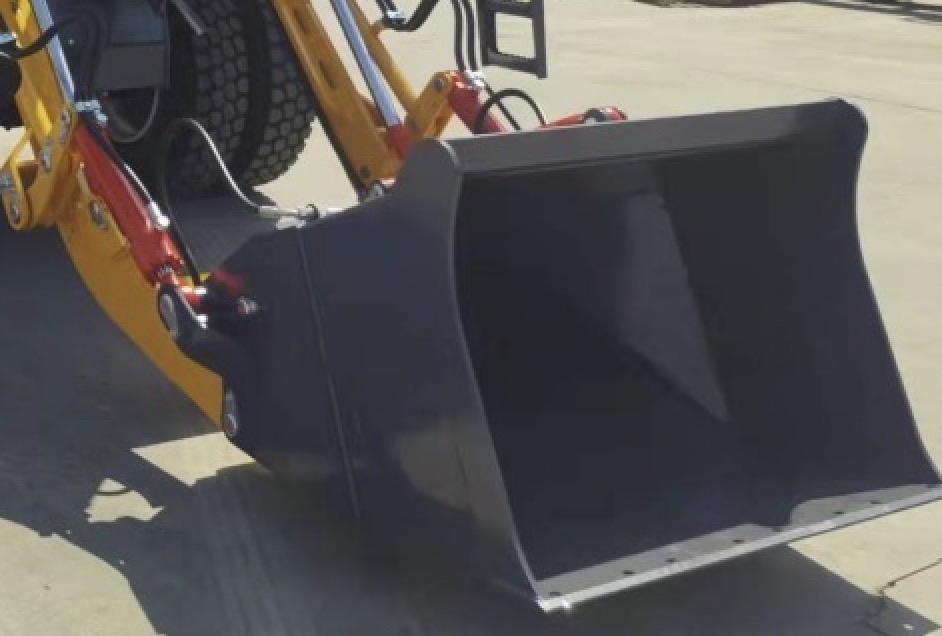

The large-capacity bucket and is equipped with a non-welded blade as standard, which is easy to replace and reduces the resistance to shoveling.

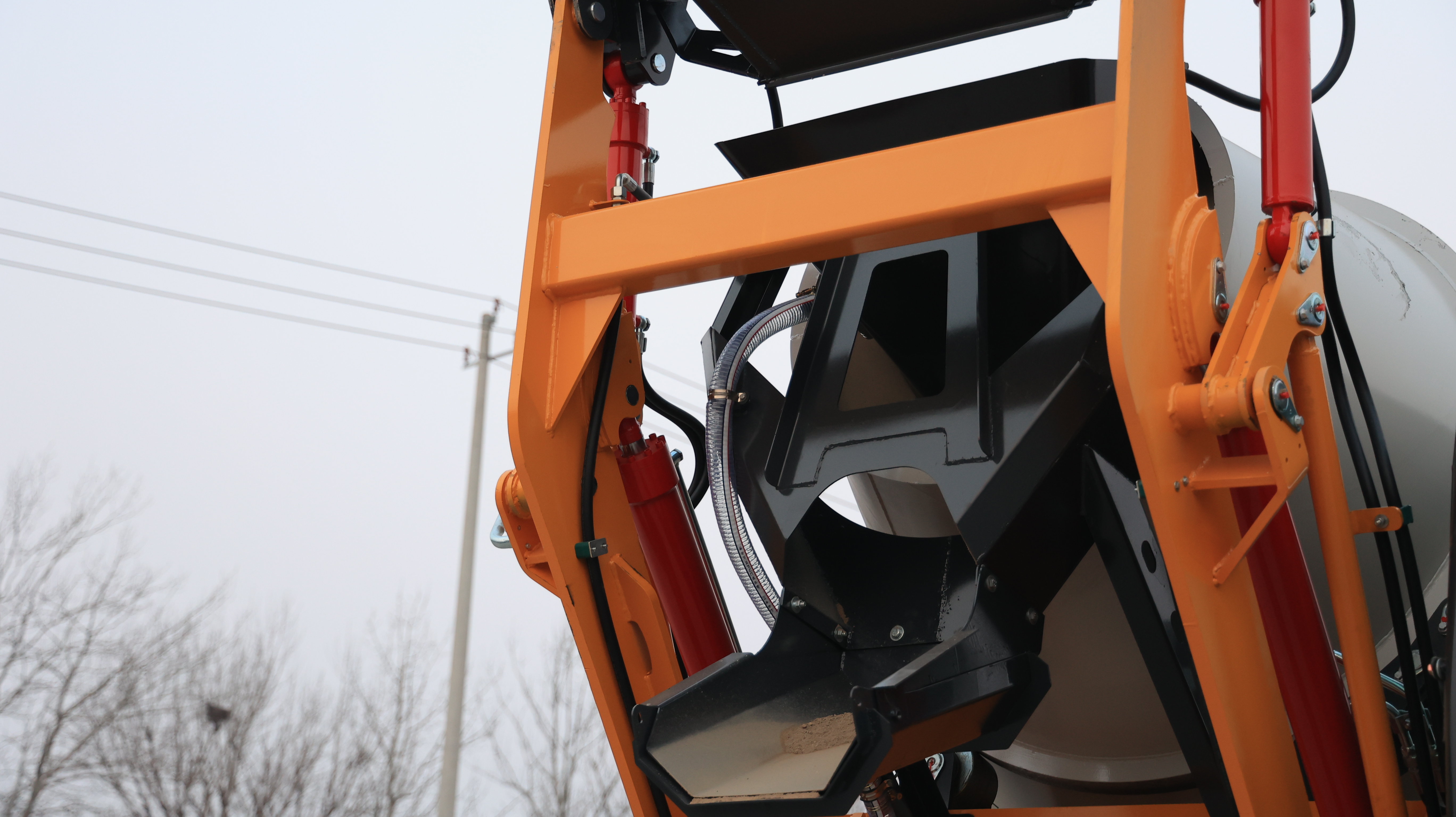

The material discharge baffle adopts the material cutting method to control the material discharge amount.
The secondary material receiving method has fast material discharge speed, no material blockage (can be equipped with a vibrator), less dust, and can be shaken. Misoperation will not damage the machine.

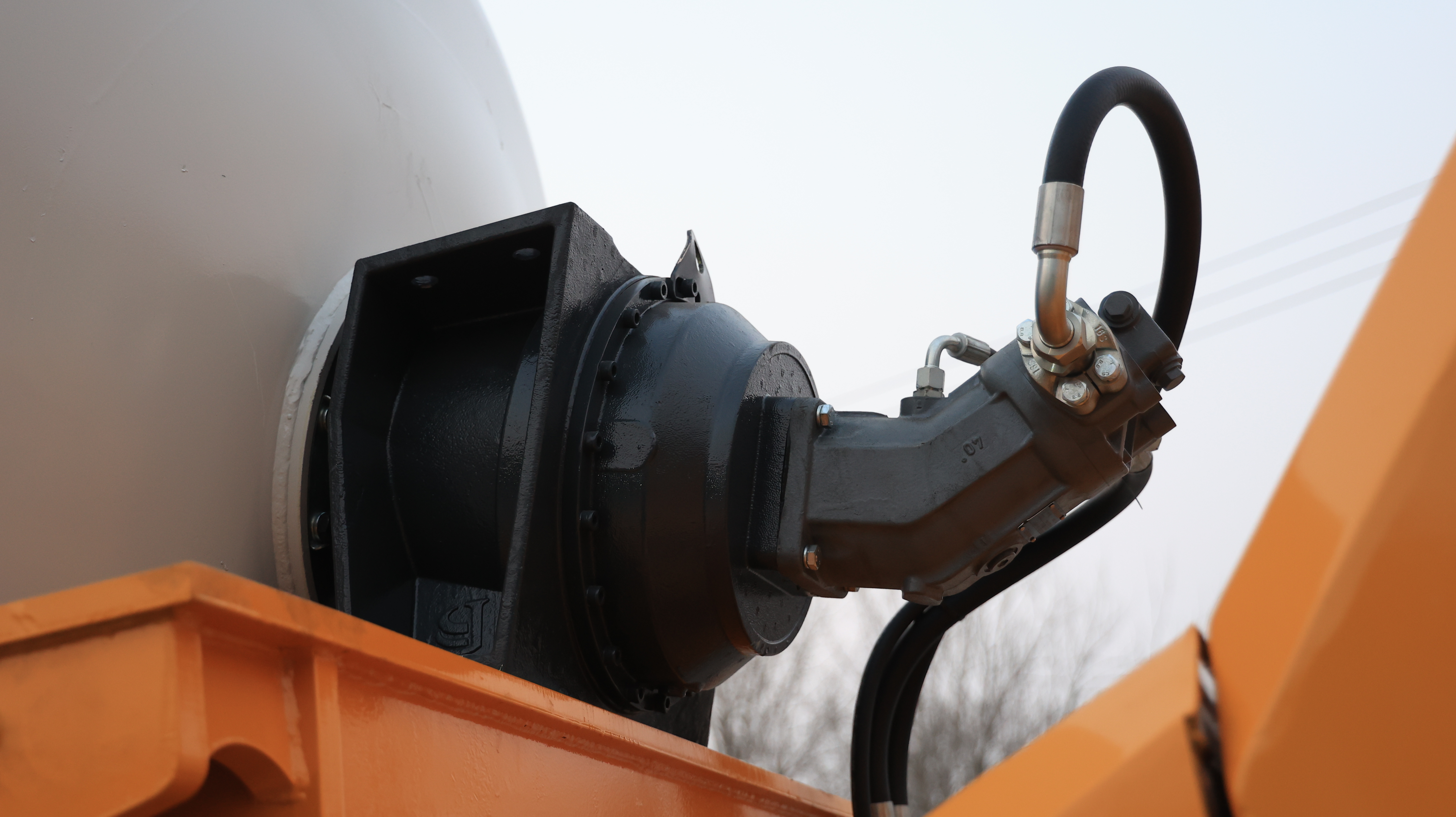

Military reducer, high-quality brand hydraulic motor, stable output speed. The tank body rotates faster than the ordinary ones on the market at idle speed.
The entire vehicle's oil cylinder and pipelines are made of high-strength materials, with excellent pressure resistance and durability, and can adapt to high-intensity working environments, reducing the frequency of failures and repairs.
Color and logo can be customized.

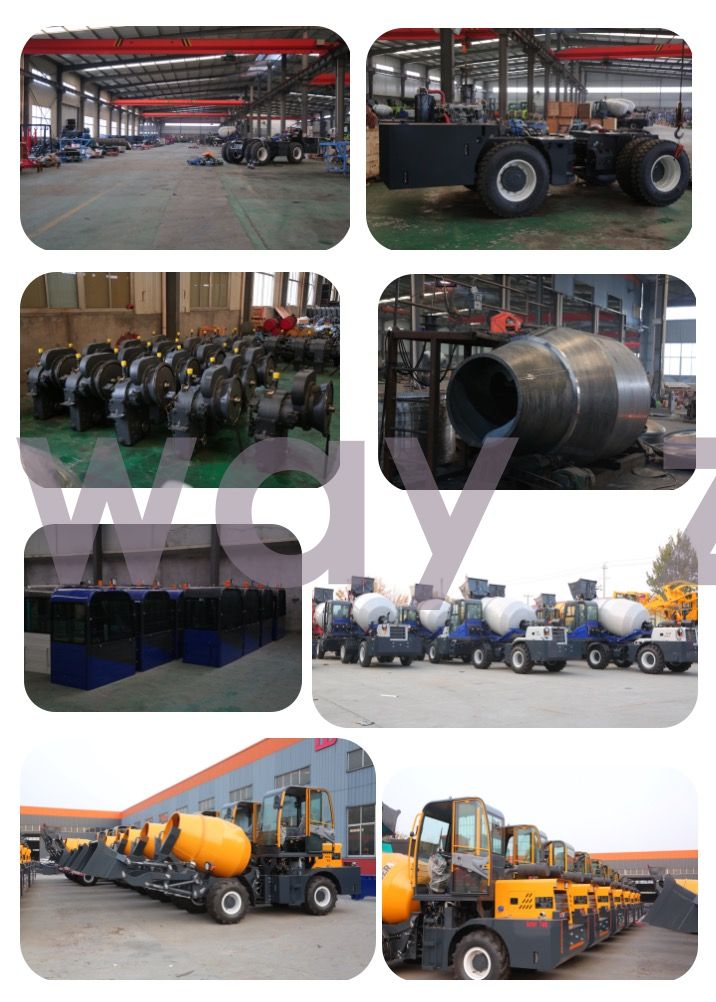

WORKSHOP
Here’s a structured summary of the mdel 5000 Concrete Mixer Truck specifications for easy comparison with the previous YUCHAI 1108 model:
Key Specifications
• Engine: WEICHAI 6105 (Supercharged), 92 kW @ 2400 rpm
• Drive/Steering: 4WD, articulated steering
• Transmission: 4 forward + 4 reverse gears
• Max Speed: 35 km/h
• Gradient Capacity: 30°
• Operating Weight: 10,740 kg (heavier than YUCHAI 1108)
• Dimensions (L×W×H): 7,000 × 3,050 × 3,640 mm (larger overall size)
Performance
• Water Tank: 1,000 L (+100L vs YUCHAI)
• Fuel Tank: 200 L (double the capacity of YUCHAI)
• Hydraulic System: 200 L capacity (+80L vs YUCHAI)
• Axle: Special wheel edge reduction bridge (20T capacity)
• Tires: 1200R24 wire tire (vacuum) (larger tires than YUCHAI's 12R22.5)
Mixing Drum
• Mixing Volume: 5.0 m³ (geometric volume: 6.5 m³) (+1.0 m³ vs YUCHAI)
• Output: 5.0 m³/batch, 20 m³/hour (higher capacity)
• Rotation Speed: 20 rpm (faster than YUCHAI's 16 rpm)
Key Differences vs YUCHAI 1108
Capacity & Size:
• Larger drum (5.0 m³ vs 4.0 m³) and higher hourly output (20 m³ vs 16 m³).
• Bigger water/fuel/hydraulic tanks for extended operation.
• Heavier (10,740 kg vs 8,800 kg) and larger dimensions.
Tires & Power:
• 1200R24 tires provide better load distribution (vs 12R22.5).
• Same rated power (92 kW) but faster drum rotation (20 rpm vs 16 rpm).
Fuel Efficiency:
• Larger fuel tank (200L) supports longer hauls but may impact fuel economy due to increased weight.
Ideal Use Case
• Suited for larger-scale projects requiring higher concrete output and longer operational range.
• Enhanced stability with heavier chassis and bigger tires for rough terrains.
Warranty
♦ 12-month warranty.
Guarantee
♦ Engine and all parts are 100% genuine and certificate is with it.
♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.
♦ Testing is done and results are verified in writing.
After-sales Support
♦ 24/7 service by chat online and phone.
♦ Lifelong and free technical support.
♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.
♦ Free troubleshooting.
