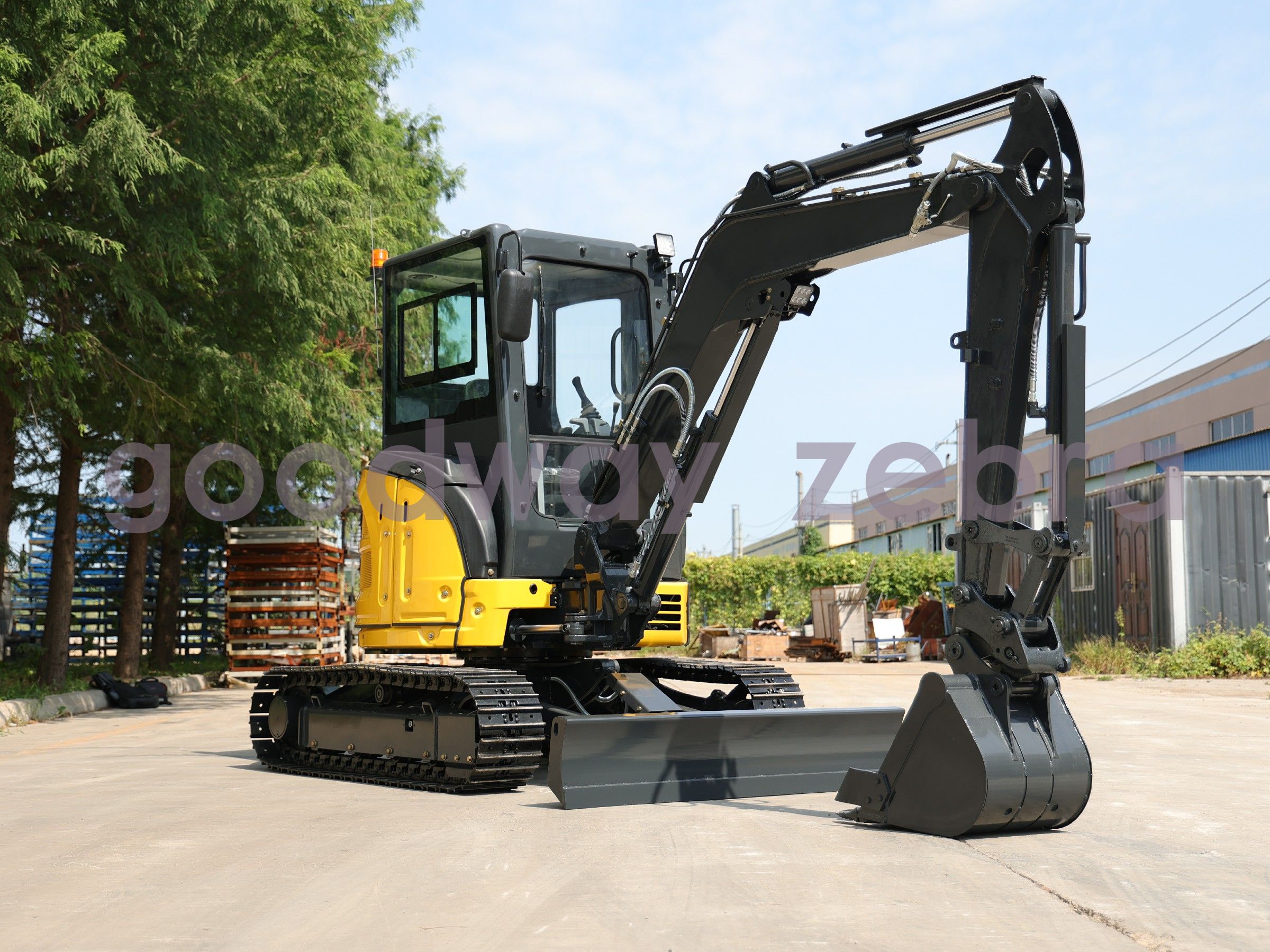

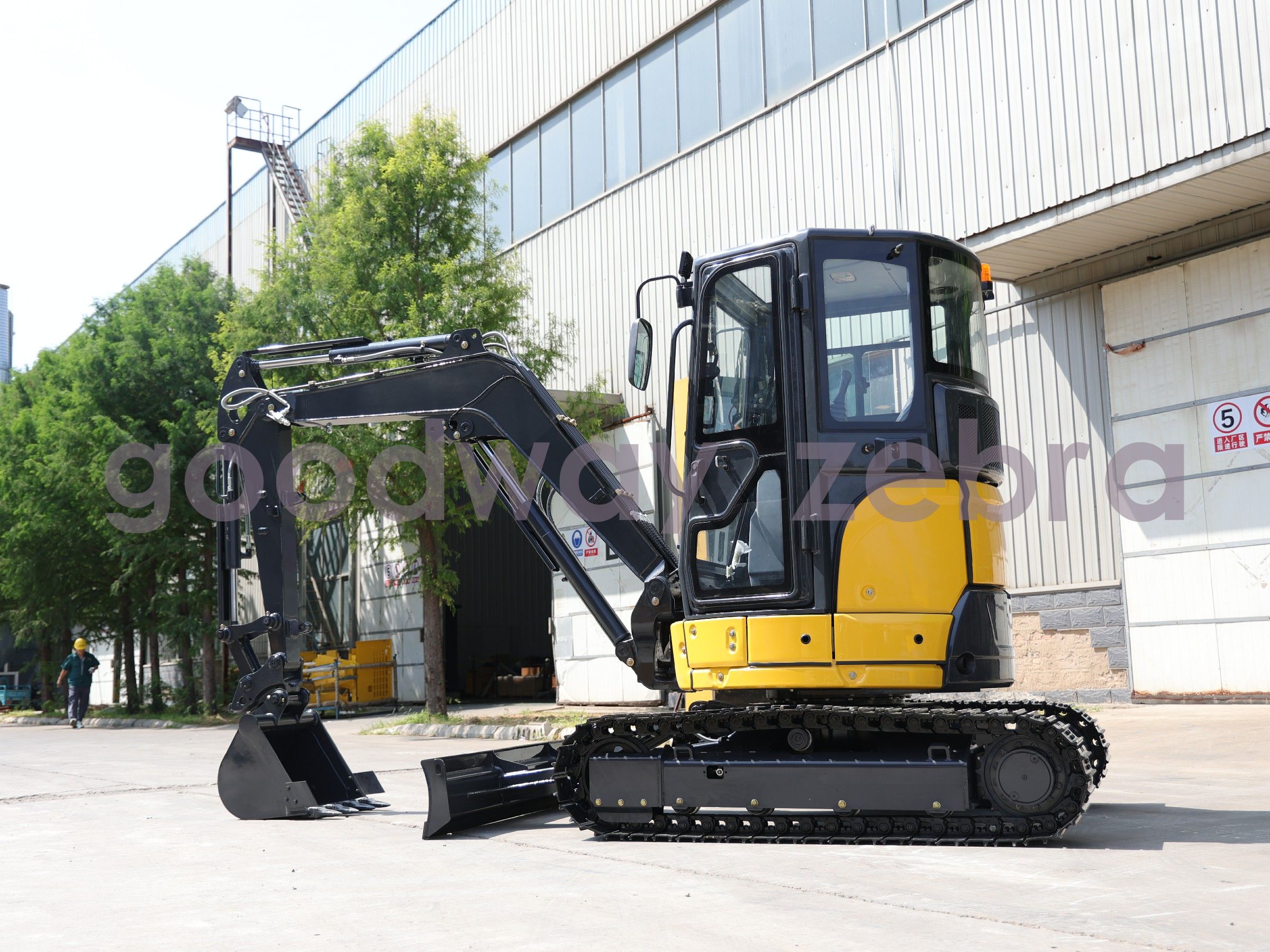

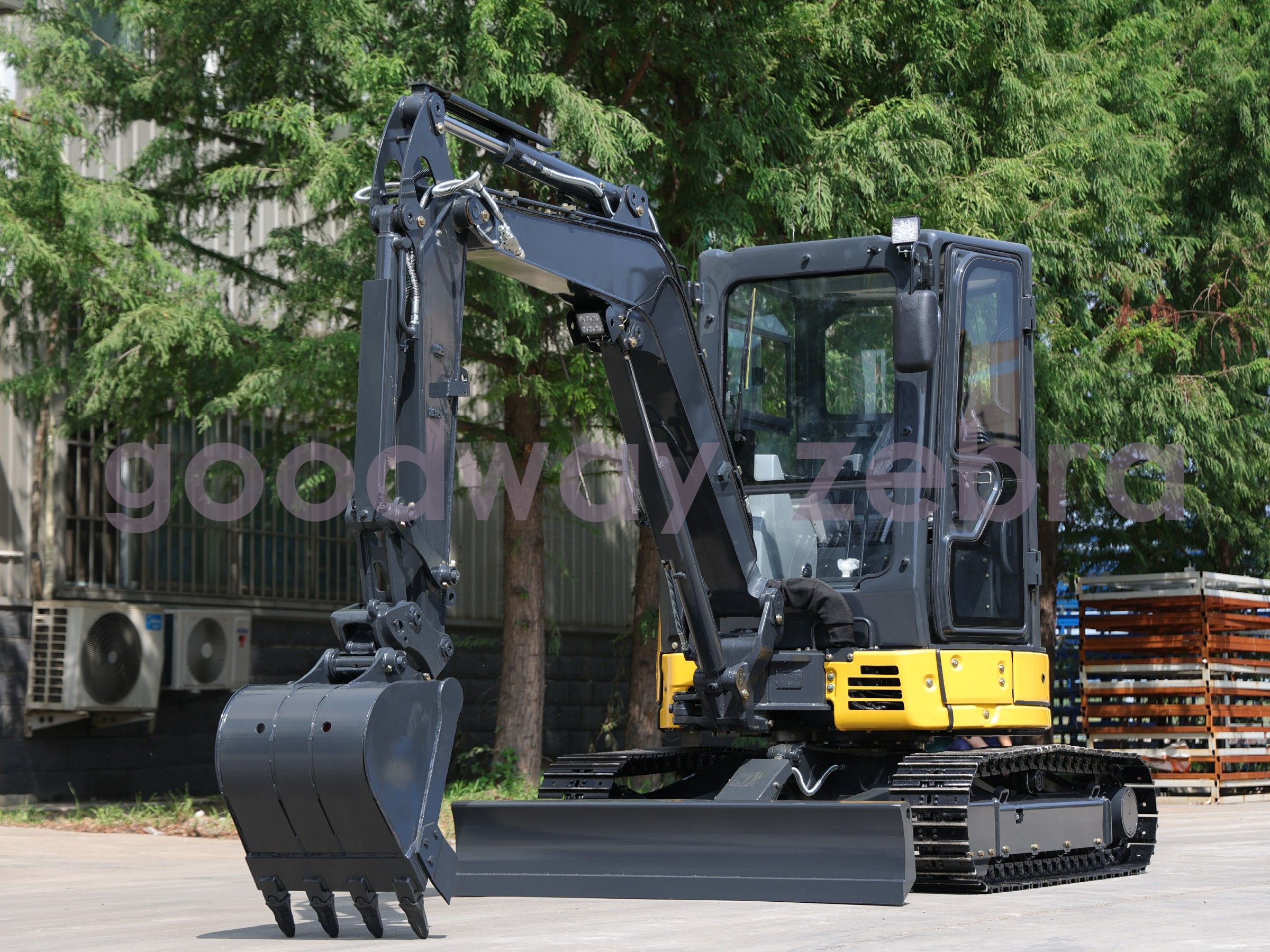

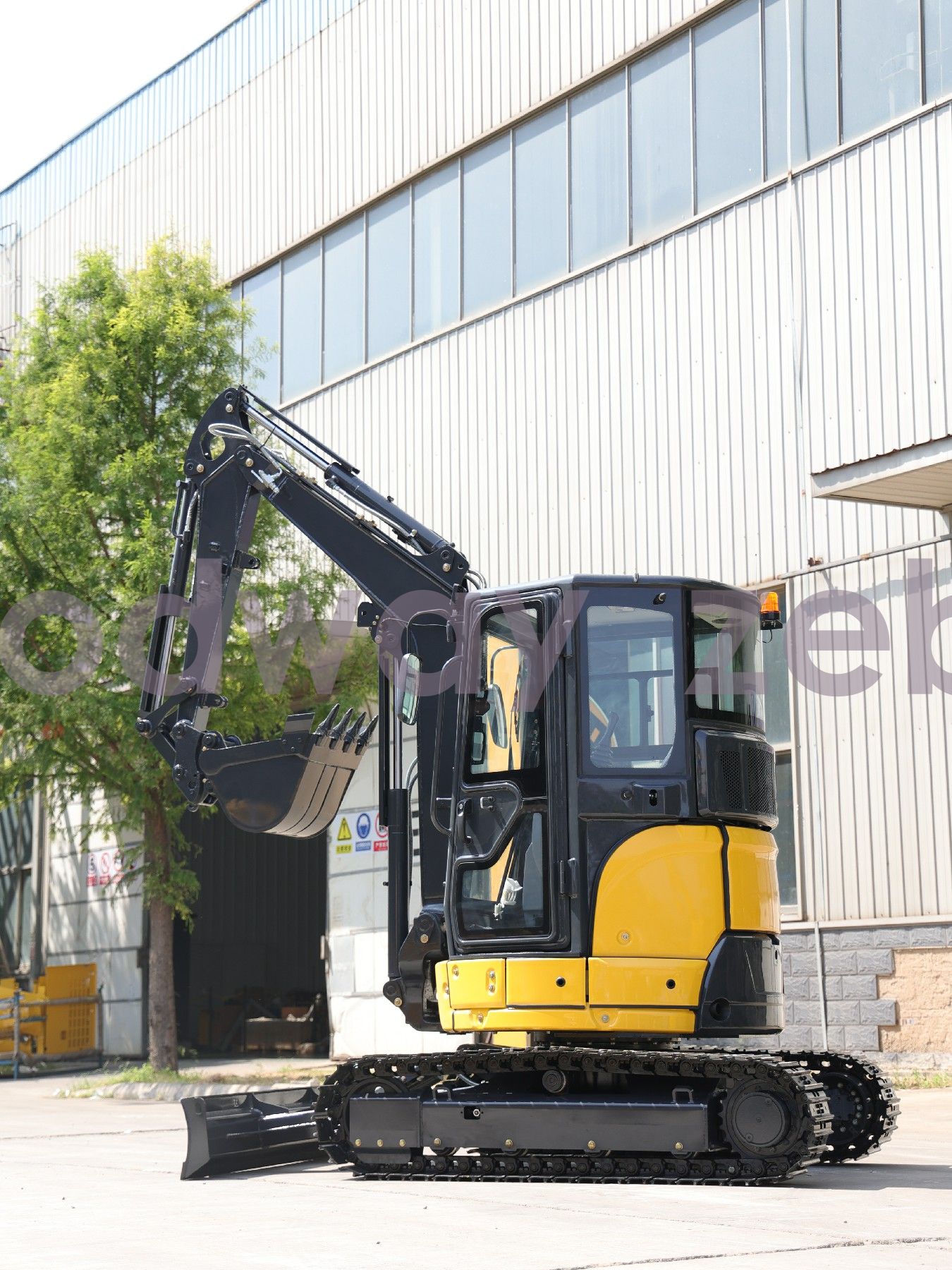

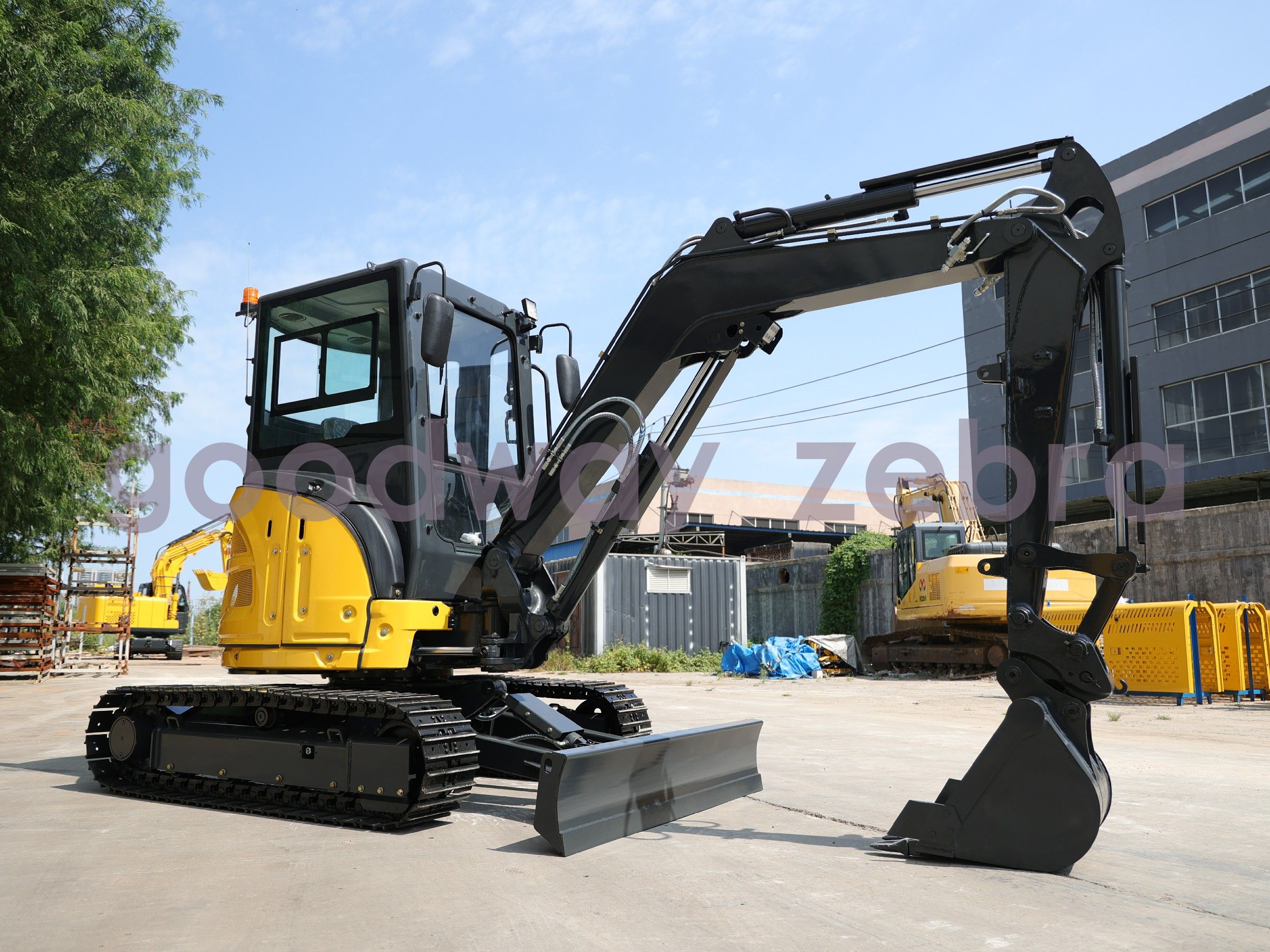

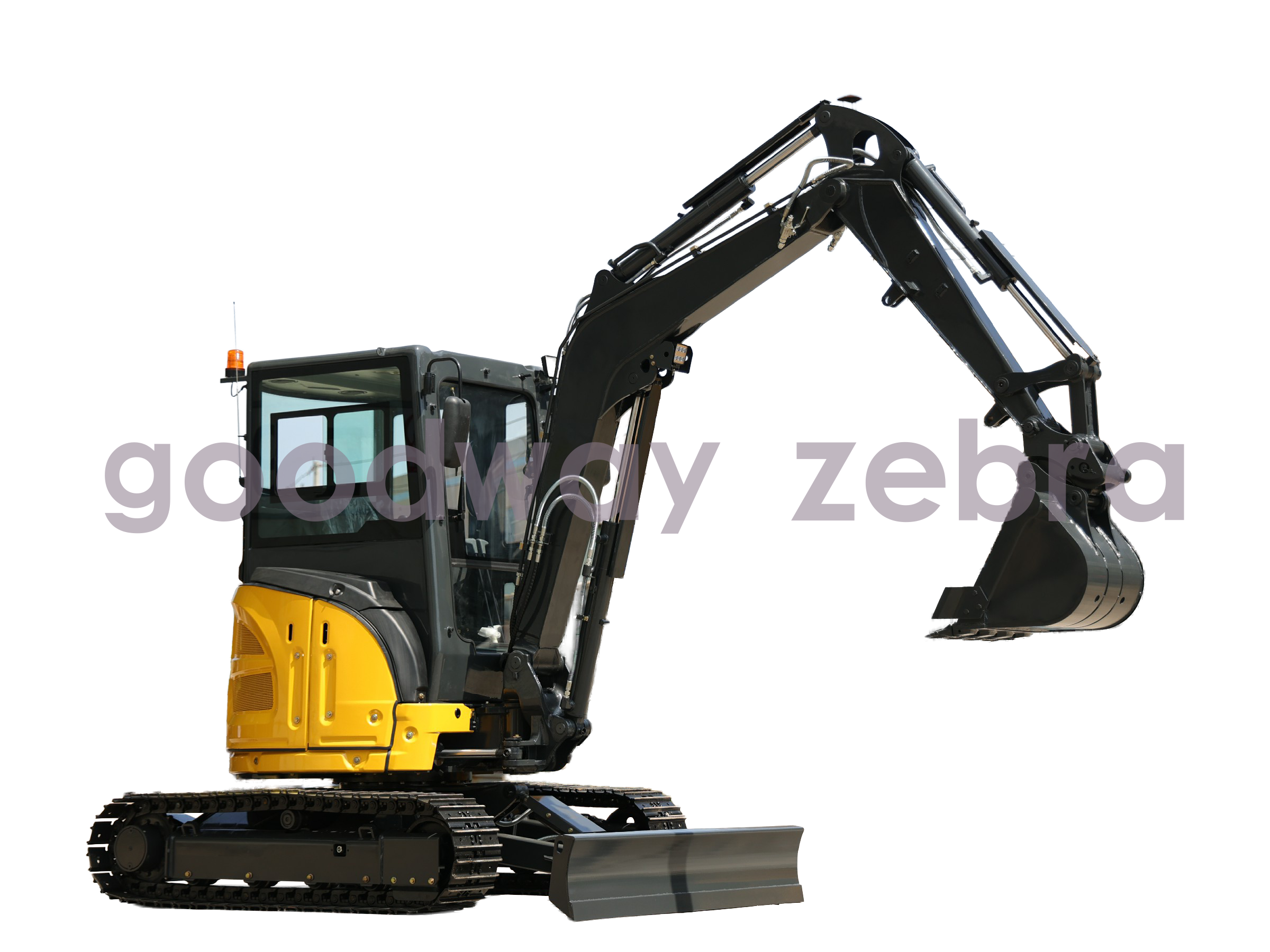

zero tail 4 ton diesel engine excavator with higher performance

Product DetailsFashinable and beautiful zero tail design excvator,it can work we

Operating Weight: 4000kg

Bucket Capacity: 0.12m3

rated power: 18.2kw

Online inquiry

Description Services

Description

Product Details

Performance：

Parameter	Value
Travel speed	2.7/4.5km/h
Max. digging height	4920mm
Max. dumping height	3490mm
Max. digging depth	3165mm
Max. digging radius	5260mm
Arm digging force	24kN
Bucket digging force	30kN
Traction	38.5kN
Swing speed	9.5r/min

Fashinable and beautiful zero tail design excvator,it can work well even in a narrow smaller space working condition .

Equipped with a boom side swing function as standard, the excavator can work flexibly in tight spaces and difficult terrain without having to move the body frequently. With the sideways swing of the boom, the excavator's reach is significantly extended and can cover a wider area. Without changing the position of the fuselage, the boom can swing to the left or right at an angle, reducing the time and effort of repetitive positioning. Improve work efficiency.

The excavator equipped with imported Yanmar brand engine,meet EU 5and EPA4 emission standard, with reliable quality and sufficient power.

The excavator is equipped with Chinese famous brand HENGLI hydraulic system: hydraulic motor，hydraculic pump and multi-valve, which makes the operation smoother and more accurate, and effectively improves the work efficiency.

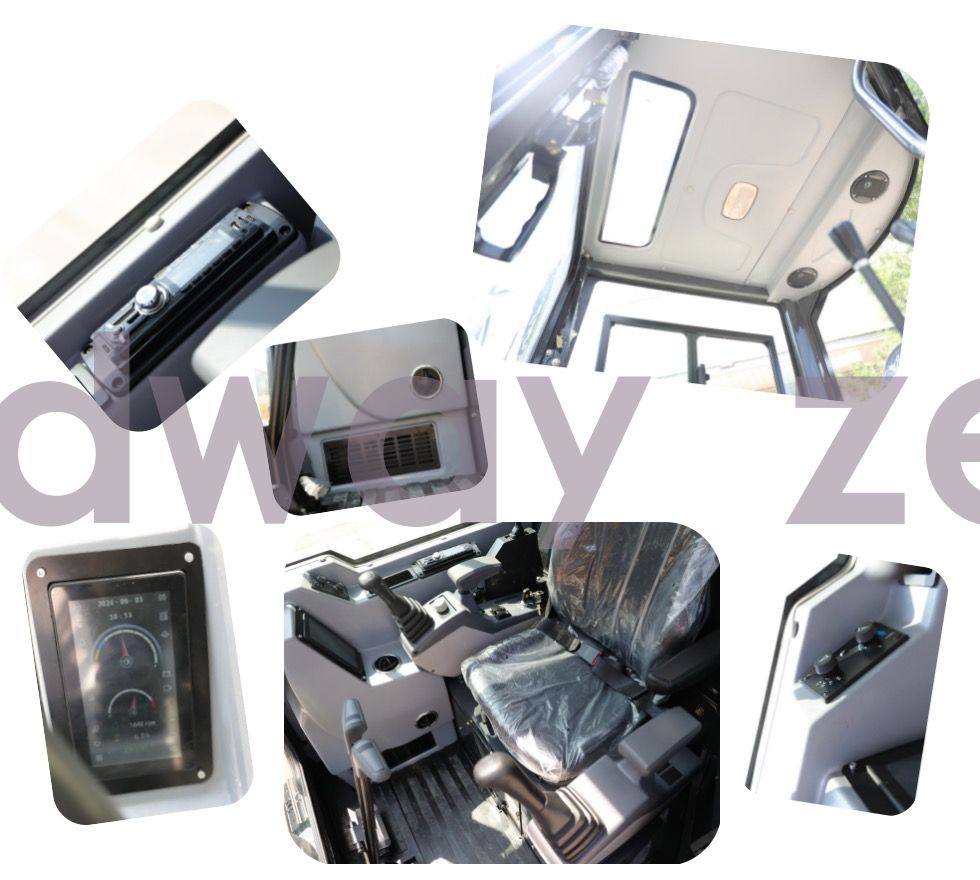

Ergonomic design, large internal space of the cab, built-in easy operate air conditioning adjustment in the cab, equipped with comfortable high-back shock-absorbing seats, high-end large displays, comfortable hydraulic operating levers, and more comfortable operation for the driver.
