HOME > PRODUCTS > LOADER > Skid steer loader

Skid steer loader with cab

Product DetailsHere‘s the complete technical specifications for the skid ste

Online inquiry

Description Services

Description

Product Details

Here's the complete technical specifications for the skid steer loader series :

SKID STEER LOADER SERIES TECHNICAL PARAMETERS

Parameter	Z25	Z35	Z35D	Z45	Z50D	Z60	Z65	Z75	Z100	Z120
Capacity
Operating load (kg)	380	500	500	700	850	850	950	1050	1100	1200
Bucket capacity (m³)	0.2	0.3	0.3	0.4	0.4	0.4	0.5	0.5	0.55	0.55
Performance
Max speed (km/h)	9	10	6	12	6	12	12	12\18	12\18	12\18
Rated flux (L/min)	50	60	60	62.5	75	75	75	75	75	75
High flow flux (L/min)	/	/	/	/	/	/	120	120	140	140
Dimensions
Overall length with bucket (mm)	2950	2950	3150	3420	3490	3490	3580	3580	3580	3580
Width (mm)	920	1350	1380	1720	1720	1880	1880	1880	1880	1880
Height to top of cab (mm)	1813	2000	1500	2140	1600	2160	2160	2160	2160	2160
Ground clearance (mm)	145	140	150	185	205	205	205	205	205	205
Power System
Rated power (kW)	18.7	37	37	37	45	45	55	55	74	103
Fuel tank capacity (L)	28	60	60	70	80	80	75	75	90	90
Special Features
Tire (track) model	6.50-10	8.5-16.5	28 * 9-15	10-16.5	28 * 9-15	12-16.5	12-16.5	12-16.5	12-16.5	12-16.5
Dumping angle at max height (°)	40	40	40	40	40	40	40	40	40	40

Product Features (Skid Steer Loader Series)

1. Versatile Model Range

10 models from Z25 (compact) to Z120 (heavy-duty)
Operating load capacity: 380kg (Z25) to 1200kg (Z120)
Bucket capacity: 0.2m³ (Z25) to 0.55m³ (Z120)

2. High-Performance Operation

Speed options:
- Standard: 6–12 km/h
- Dual-speed models (Z75+): 12/18 km/h
Hydraulic system:
- Standard flow: 50–75 L/min
- High-flow option (Z65+): 120–140 L/min
Dumping angle: Consistent 40° across all models

3. Robust Power & Efficiency

Engine power: 18.7kW (Z25) to 103kW (Z120)
Fuel capacity: 28L (Z25) to 90L (Z120)
Track/tire options:
- Compact: 6.50-10 tires (Z25)
- Heavy-duty: 12-16.5 tracks (Z60+)

4. Compact Yet Powerful Design

Compact dimensions:
- Width: 920mm (Z25) to 1880mm (Z60+)
- Ground clearance: 145–205mm (optimized for rough terrain)
Low-profile models (Z35D/Z50D): 1500–1600mm height for confined spaces

5. Safety & Stability

Standard ROPS/FOPS cabin (falling object protection)
Wide stance: Up to 1880mm width for stability
High ground clearance (205mm) for obstacle clearance

6. Specialized Configurations

High-flow hydraulics for attachments (Z65+)
Dual-speed transmission (Z75+)
Low-profile variants (Z35D/Z50D) for underground/indoor use

7. Fuel Efficiency & Durability

Optimized fuel consumption (diesel engines)
Heavy-duty undercarriage for long-term reliability

Ideal for: Construction, agriculture, landscaping, mining, and material handling.
Key Advantage: Modular design supports various attachments (augers, breakers, snow blowers, etc.).

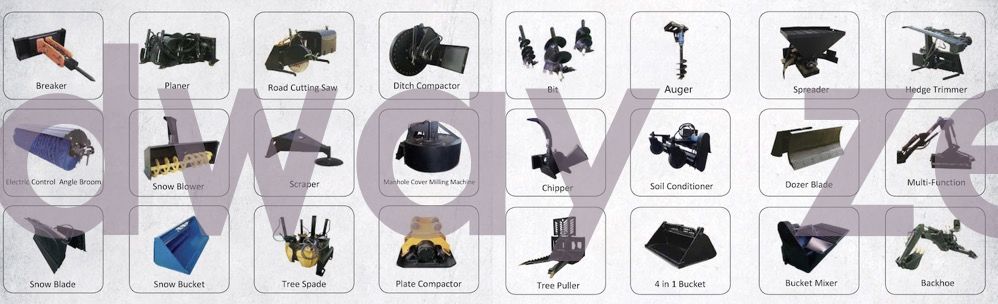

Other Optional Accessories

Services

Warranty

♦ 12-month warranty.

Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.

After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
