Heavy Duty Telehandler

Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle
Rated Load: 0.025m³
Standard Lifting height: backhoe
Fork length: 380mm
Tire(F/R): 930mm
Wheelbase: 180mm
Overall weight: 2550mm
Description Services
Description

Here are the clearly categorized specification tables in English, grouped by Compact Models (TR730/TR750) and High-Reach Models (TR1440/TR1845):



1: Compact Telehandlers (TR730 / TR750)


CategoryTR730TR750
Load & Lift

Max Lift Capacity3,000 kg5,000 kg
Lift Height7,000 mm7,000 mm
Max Forward Reach3,600 mm4,000 mm
Reach at Max Height450 mm450 mm
Carriage Rollback Angle42.6°42.6°
Carriage Dump Angle37.5°37.5°
Dimensions & Weight

Unloaded Weight7,000 kg8,000 kg
Overall Height2,300 mm2,300 mm
Overall Width (Over Tyres)2,150 mm2,150 mm
Overall Length (to Front Tyres)4,200 mm4,200 mm
Ground Clearance350 mm350 mm
Tires & Steering

Tire Type16/70-20 Semi-solid16/70-24 Semi-solid
Turning Radius (Over Tyres)4,250 mm4,250 mm
Engine

Engine ModelYunnei YN38GBZYuchai YCD4J22T-125
Rated Power76 kW91 kW
Attachments

Standard Fork LengthNot specified1,220 mm



2: High-Reach Telehandlers (TR1440 / TR1845)


CategoryTR1440TR1845
Load & Lift

Rated Load4,000 kg4,500 kg
Max Lift Height14,000 mm17,550 mm
Max Forward Reach9,580 mm13,080 mm
Dimensions & Weight

Weight (With Forks)12,300 kg13,500 kg
Overall Dimensions (L×W×H)6,970 × 2,430 × 2,550 mm6,970 × 2,430 × 2,550 mm

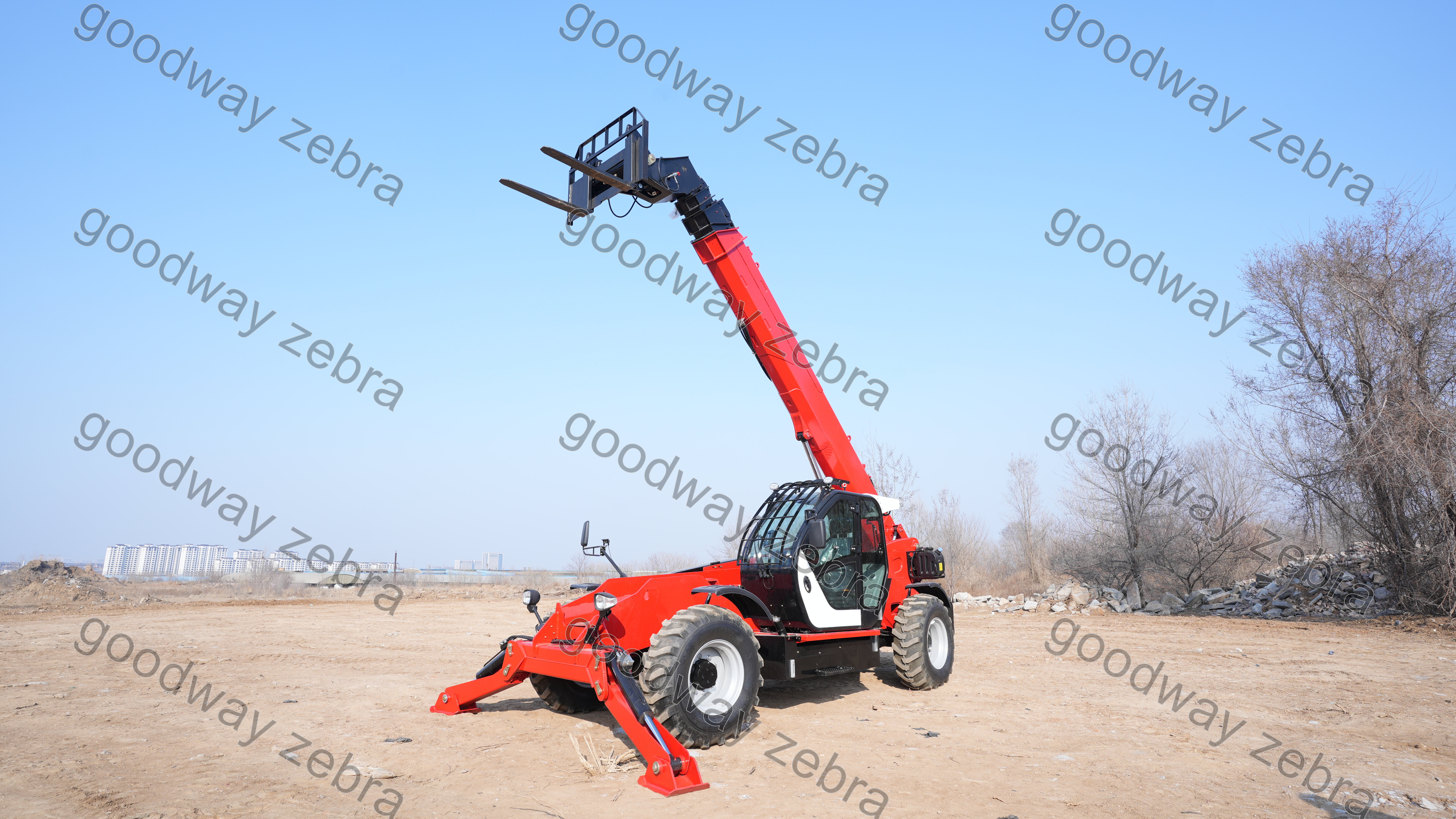

Min Width (Outriggers Open)3,800 mm3,800 mm
Ground Clearance420 mm420 mm
Tires & Steering

Tire Type16.8-24 Tubeless16.8-24 Tubeless
Steering ModesFront/Crab/4-WheelFront/Crab/4-Wheel
Max Travel Speed30 km/h30 km/h
Turning Radius (Outer Wheel)≤4,500 mm≤4,500 mm
Engine

Standard EngineYuchai YCD4J22T-125Yuchai YCD4J22T-125
Rated Power91 kW @ 2,600 rpm91 kW @ 2,600 rpm
Optional EnginesCummins 4BTA3.9-C125, etc.Cummins 4BTA3.9-C125, etc.
Hydraulics & Controls

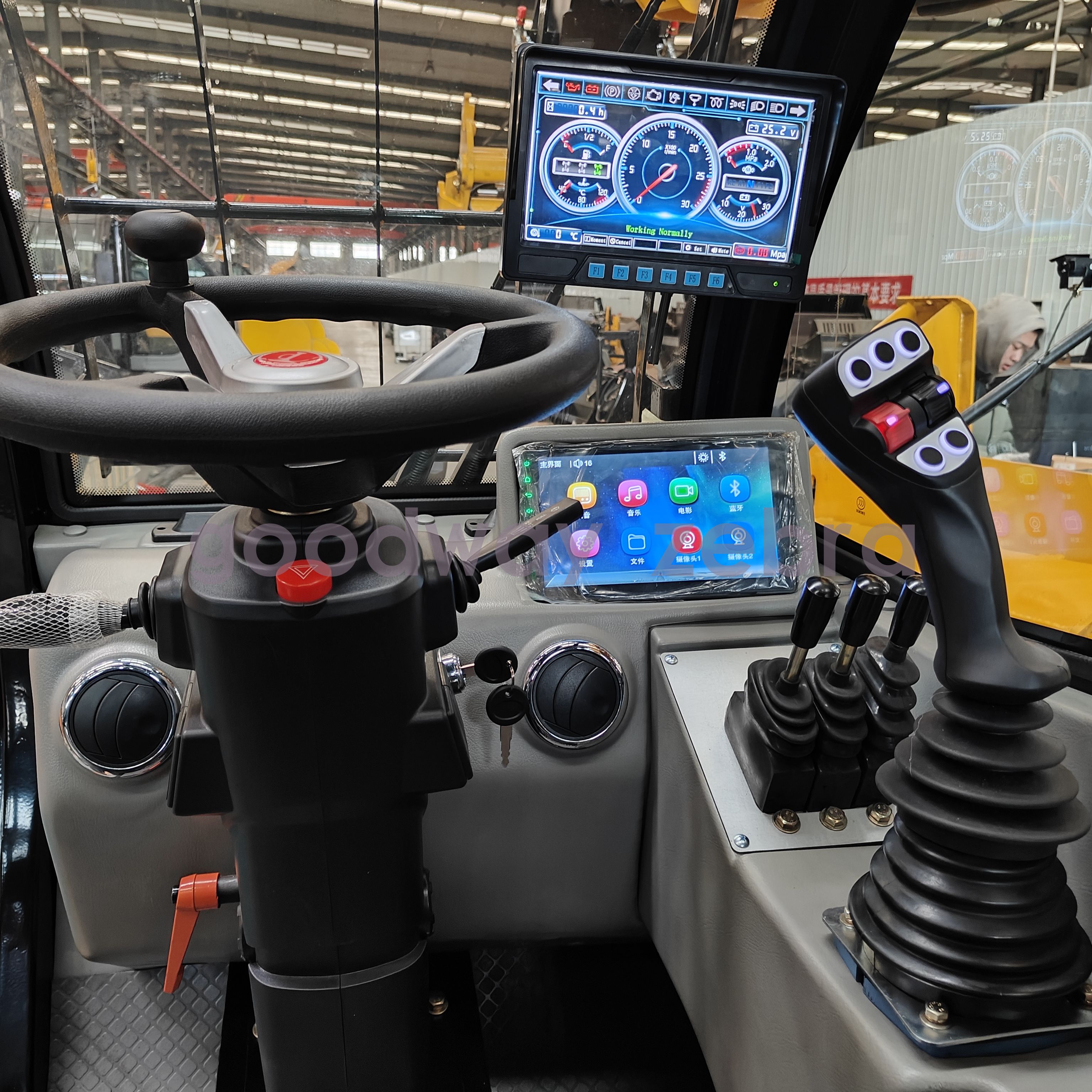

Hydraulic ControlMultifunctional Handle (Overload Protection)Same as TR1440
Frame Leveling+/- 9°+/- 9°
Attachments

Standard Fork Size1,200 × 125 × 50 mm1,200 × 125 × 50 mm



Key Notes

  • Compact Models (TR730/TR750): Designed for medium-duty tasks with semi-solid tires and compact dimensions.

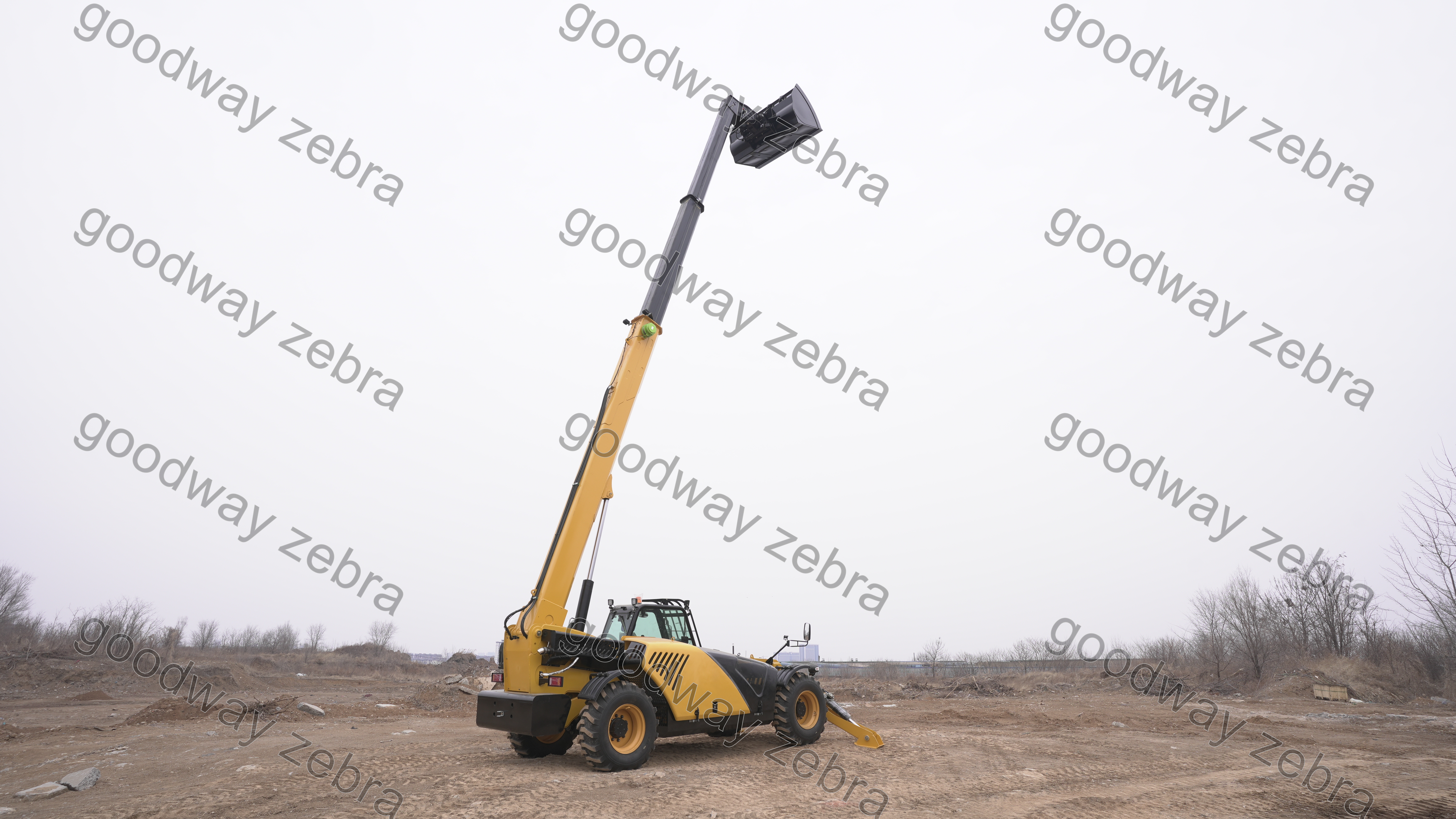

  • High-Reach Models (TR1440/TR1845): Optimized for extended reach (up to 17.55m) with advanced steering, tubeless tires, and optional engines.

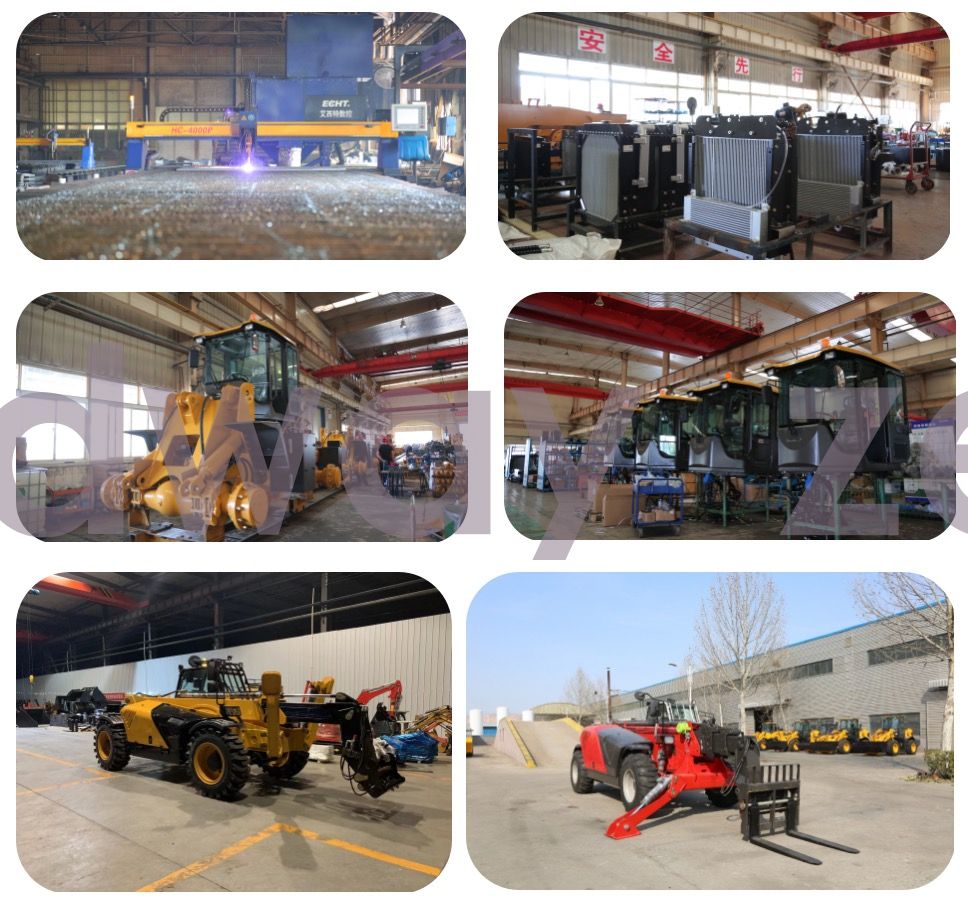

WORKSHOP



Services
Warranty time1 year or 1200 working hours1 year or 1500 working hours



Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.



After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
