Model GWZ388 backhoe loader

Slots provide gas and water dissipationSlots help to increase pad bite and improve air circulationDrilled Holes and Slots create an escape route for debris, dust, gases, and waterSlots clean and de-gl
operating weight: 8200
Loaing Bucket Capacity: 1.0 m³
Bachoe Bucket Capacity: 0.3m³
Rated Loading Weight: 2500kg
Max. Digging Depth: 4082mm
Description Services
Description

Product Details


The appearance design of the machine body is beautiful, the lines are smooth, and the layout of the whole vehicle is fashionable and luxurious.


The cab is spacious, with safety glass and a reversing camera, so the operator can have a good view when working. It is equipped with a 360° swivel seat with suspension and shock absorption, and it is equipped with a seat belt for high comfort.


Multiple functions can be implemented on a single device. The front end is equipped with a loading device for shoveling materials, while the rear end of the excavation dfon

tevice can be used to dig soil, rocks, etc.


Equipped with a high-power engine, providing sufficient power, using an integral hydraulic shifter, easy to maintain, suitable for long-term operation. The forward-leaning front frame has a long unloading distance, a large lifting weight, and the action time of the working device is shortened, which improves the operation efficiency of the whole machine.


The Backhoe Loader GWZ388 is a versatile piece of construction equipment designed for both loading and excavating tasks. Below is a summarized breakdown of its key specifications:

General Specifications

  • Operating Weight: 8,200 kg
  • Transport Dimensions (L×W×H): 6,230 × 2,365 × 3,752 mm
  • Wheelbase: 2,250 mm
  • Min. Ground Clearance: 300 mm

Loading Performance

  • Bucket Capacity: 1.0 m³
  • Rated Loading Weight: 2,500 kg
  • Bucket Dumping Height: 2,742 mm
  • Bucket Dumping Distance: 1,062 mm
  • Max. Breakout Force: 39 kN

Backhoe (Excavator) Performance

  • Bucket Capacity: 0.3 m³
  • Max. Digging Depth: 4,082 mm
  • Swing Angle: 190°
  • Digging Force: 46.5 kN

Engine (Option 1)

  • Model: Cummins 4BTA3.9-C100
  • Power: 75 kW (100 HP)
  • Rated Speed: 2,200 rpm
  • Displacement: 3.9L

Transmission & Mobility

  • Gearbox Type: Fixed Shaft Power Transmission
  • Gears: 2 Forward + 2 Reverse
  • Max. Speed: 28 km/h
  • Tire Model:
    • Front: 14-17.5
    • Rear: 19.5L-24

Steering System

  • Model: BZZ5-250
  • Steering Angle: ±36°
  • Min. Turning Radius: 6,581 mm
  • System Pressure: 12 MPa

Key Features

Strong Digging & Loading Performance (46.5 kN / 39 kN breakout forces)
Cummins Engine (Reliable 75 kW power)
Compact & Maneuverable (6.58m turning radius)
High Dumping Height (2.74m for efficient material handling)

This machine is suitable for construction, agriculture, and utility work, offering a balance of power and efficiency.

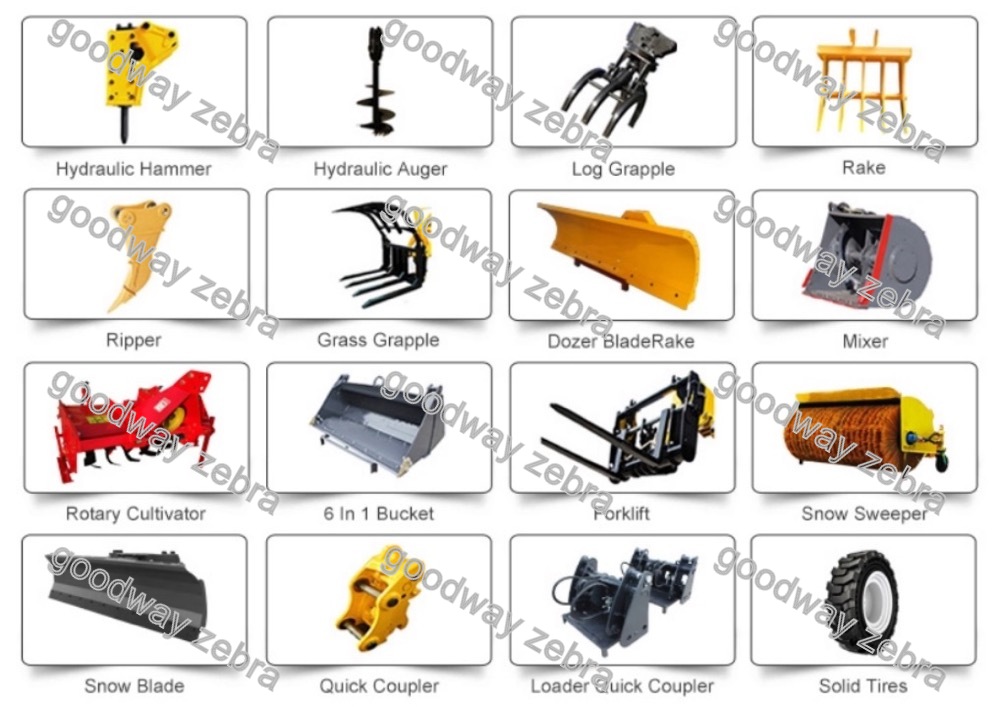

                       Other Optional Accessories

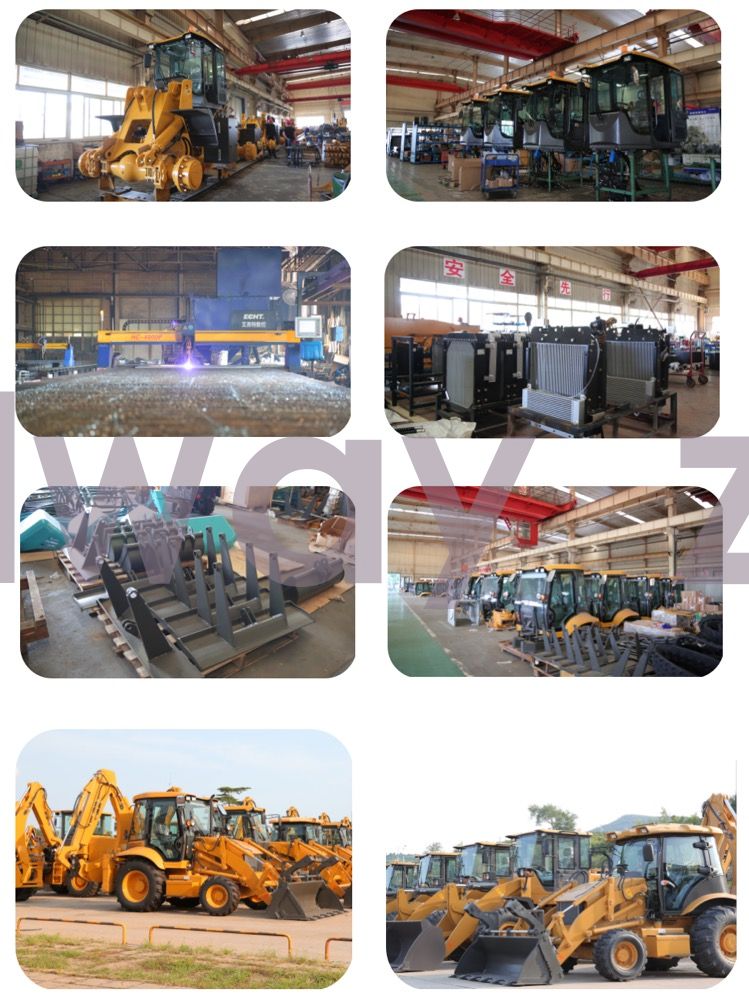

WORKSHOP



Services

Warranty

♦ 12-month warranty.



Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.



After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
