Model GWZ20-28 /GWZ25-30 backhoe loader

Fixed calipers by Wilwood offer unmatched stopping power. The pistons in fixed calipers are located on both sides of the disc, allowing for evenly distributed clamping force. They apply more squeezing
operating weight: 5400kg 6000kg
Loaing Bucket Capacity: 1.0 m³ 1.2 m³
Bachoe Bucket Capacity: 0.2m³ 0.25m³
Rated Loading Weight: 2500kg 3000kg
Max. Digging Depth: 2600mm 2600mm
Description Services
Description

Product Details


Multiple functions can be implemented on a single device. The front end is equipped with a loading device for shoveling materials, while the rear end of the excavation device can be used to dig soil, rocks, etc.


By replacing different working devices, such as crushing hammers, forks, grabs, etc., the equipment can adapt to a variety of construction needs, including excavation, loading and unloading, etc., which greatly improves the efficiency of the machine, and is suitable for small earthwork engineering, landscaping, agricultural orchard planting, concrete crushing and other construction sites with small space.


It is easy to operate, strong in power, and realizes mutual supply of hydraulic power for excavation and loading. It can be flexibly moved on various terrains, which improves construction efficiency.


The seat rotates to allow the operator to switch between different working ends, and the seat belt increases the safety of operation. The 360° swivel seat with suspension shock absorption improves the comfort of the driver.




Here’s a detailed comparison between the GWZ20-28 and GWZ25-30 backhoe loaders, highlighting their similarities, differences, and ideal use cases:


Key Specifications Comparison

FeatureGWZ20-28GWZ25-30
Dimensions (L×W×H)6200 × 1960 × 2850 mm6800 × 2040 × 2850 mm
Operating Weight5400 kg6000 kg
Rated Load Capacity2500 kg3000 kg
Engine Power76 kW (104 hp)92 kW (125 hp)
Backhoe Capacity0.2 m³0.25 m³
Loader Capacity1.0 m³1.2 m³
Max Digging Depth2600 mm2600 mm
Max Digging Height4300 mm4400 mm
Max Digging Radius4600 mm4600 mm
Loader Breakout Force42 kN (4284 kg)42 kN (4284 kg)
Travel Speed0–30 km/h0–30 km/h
Tire Model16/70-2016/70-20
Comfort FeaturesAir-conditioningAir-conditioning

Key Differences

  1. Power & Performance:

    • The GWZ25-30 has a 92 kW (125 hp) engine, making it better suited for heavy-duty tasks compared to the GWZ20-28 (76 kW / 104 hp).
    • Higher load capacity (3000 kg vs. 2500 kg) and larger buckets (1.2 m³ loader vs. 1.0 m³).
  2. Size & Stability:

    • The GWZ25-30 is larger (6800 mm long vs. 6200 mm) and heavier (6000 kg vs. 5400 kg), providing better stability for heavy loads.
  3. Digging Height:

    • Slightly taller max digging height (4400 mm vs. 4300 mm) for the GWZ25-30.

Shared Features

  • Hydraulic Transmission: Smooth operation in both models.
  • Air-Assist Braking: Reliable stopping power.
  • EPA/EU5 Engine Option: Compliance with emission standards.
  • Identical Breakout Forces: Same digging and loader forces (28 kN backhoe, 42 kN loader).
  • Same Tire Size & Pressure: 16/70-20 tires at 250 kPa.

Which Model to Choose?

  • GWZ20-28: Ideal for medium-duty construction, landscaping, and agricultural tasks where a balance of power and maneuverability is needed.
  • GWZ25-30: Better for heavy-duty applications (e.g., mining, large-scale earthmoving) thanks to its higher power, larger buckets, and greater load capacity.

Conclusion

Both models offer robust performance, but the GWZ25-30 is the clear choice for more demanding jobs, while the GWZ20-28 provides a cost-effective solution for standard tasks.

Would you like a comparison with other models (e.g., GWZ10-20 or GWZ15-26) or further details on specific features?

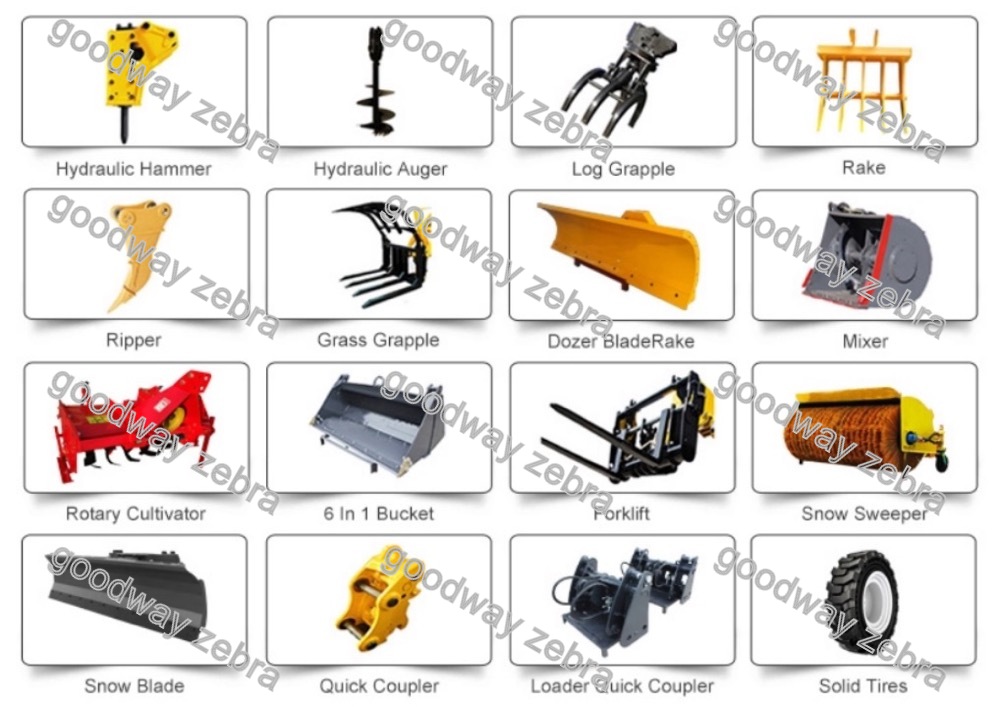

Other Optional Accessories

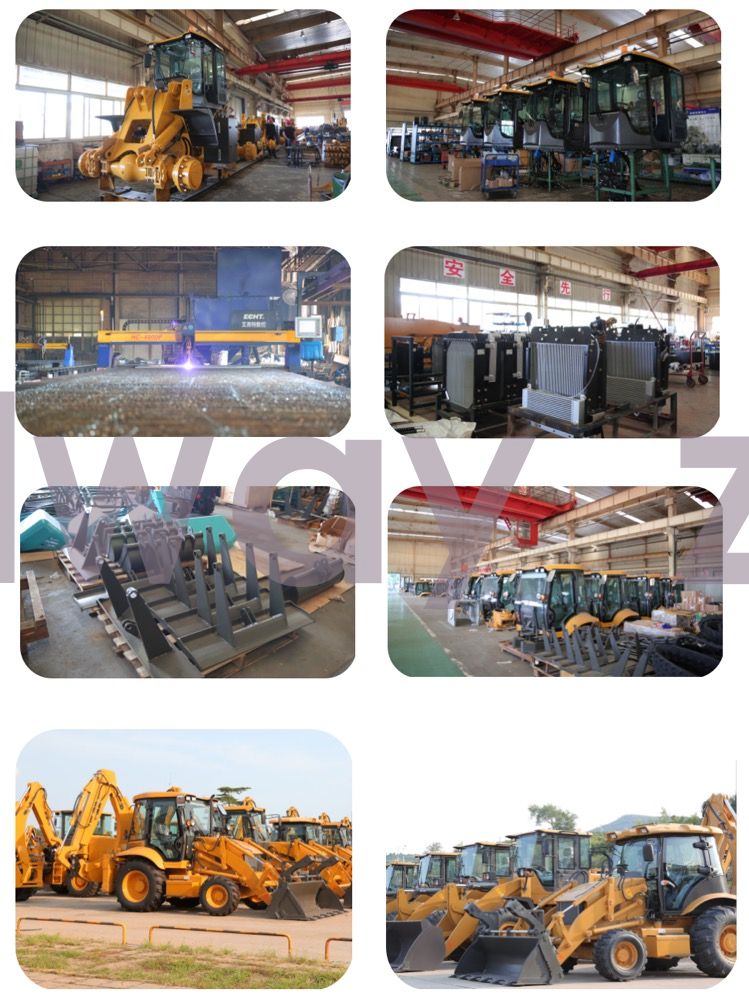

WORKSHOP



Services

Warranty

♦ 12-month warranty.



Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.



After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
