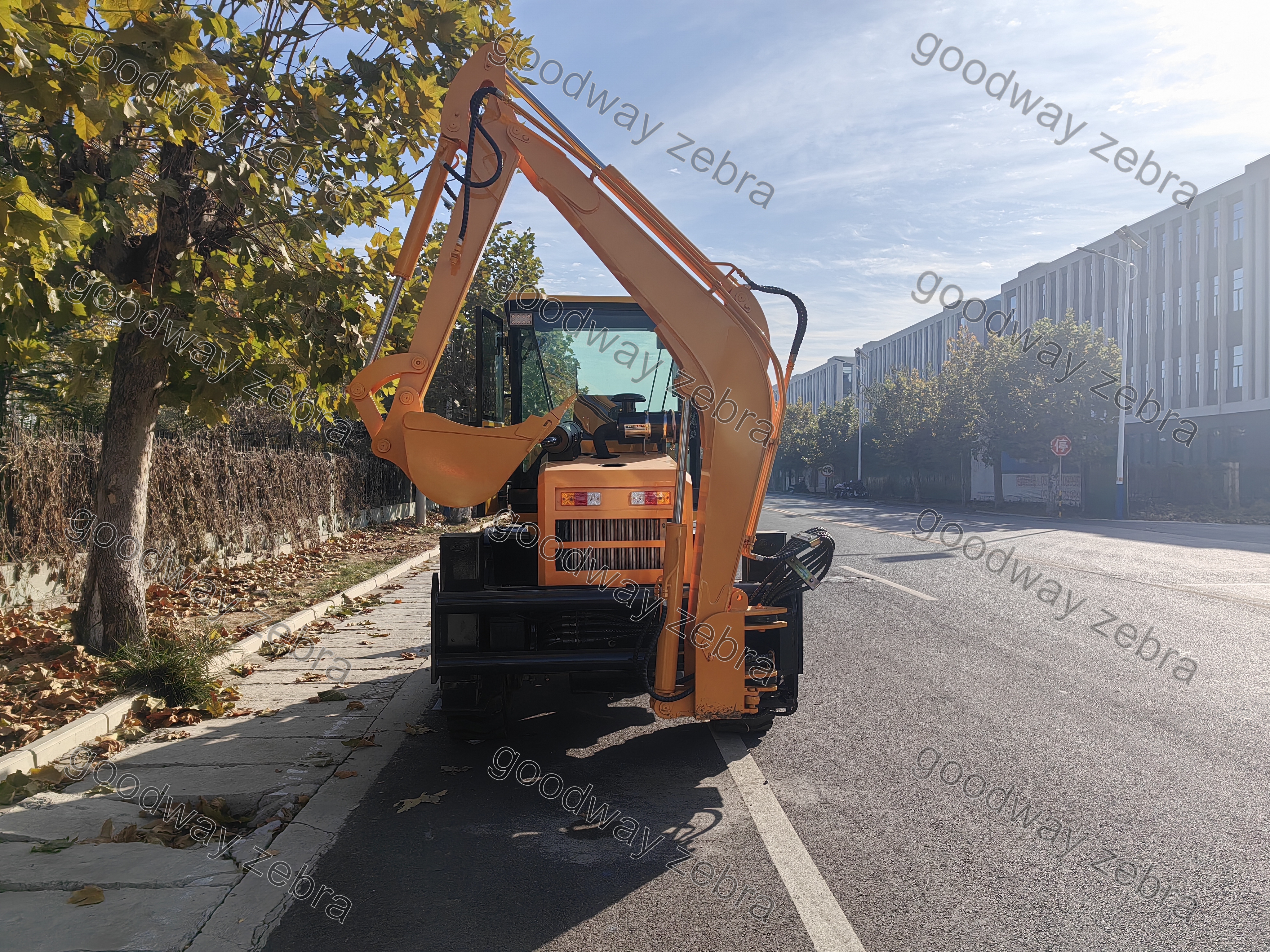

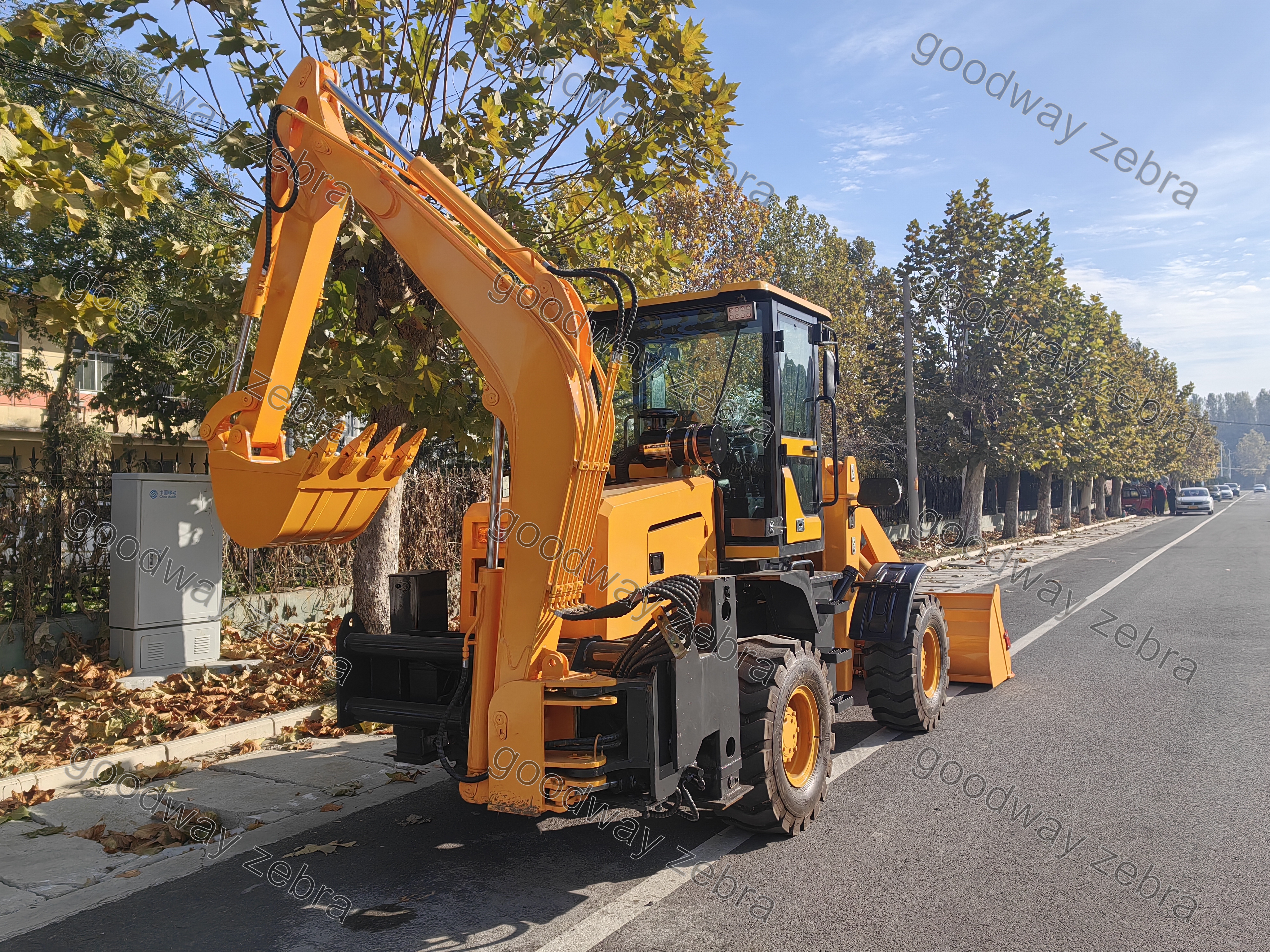

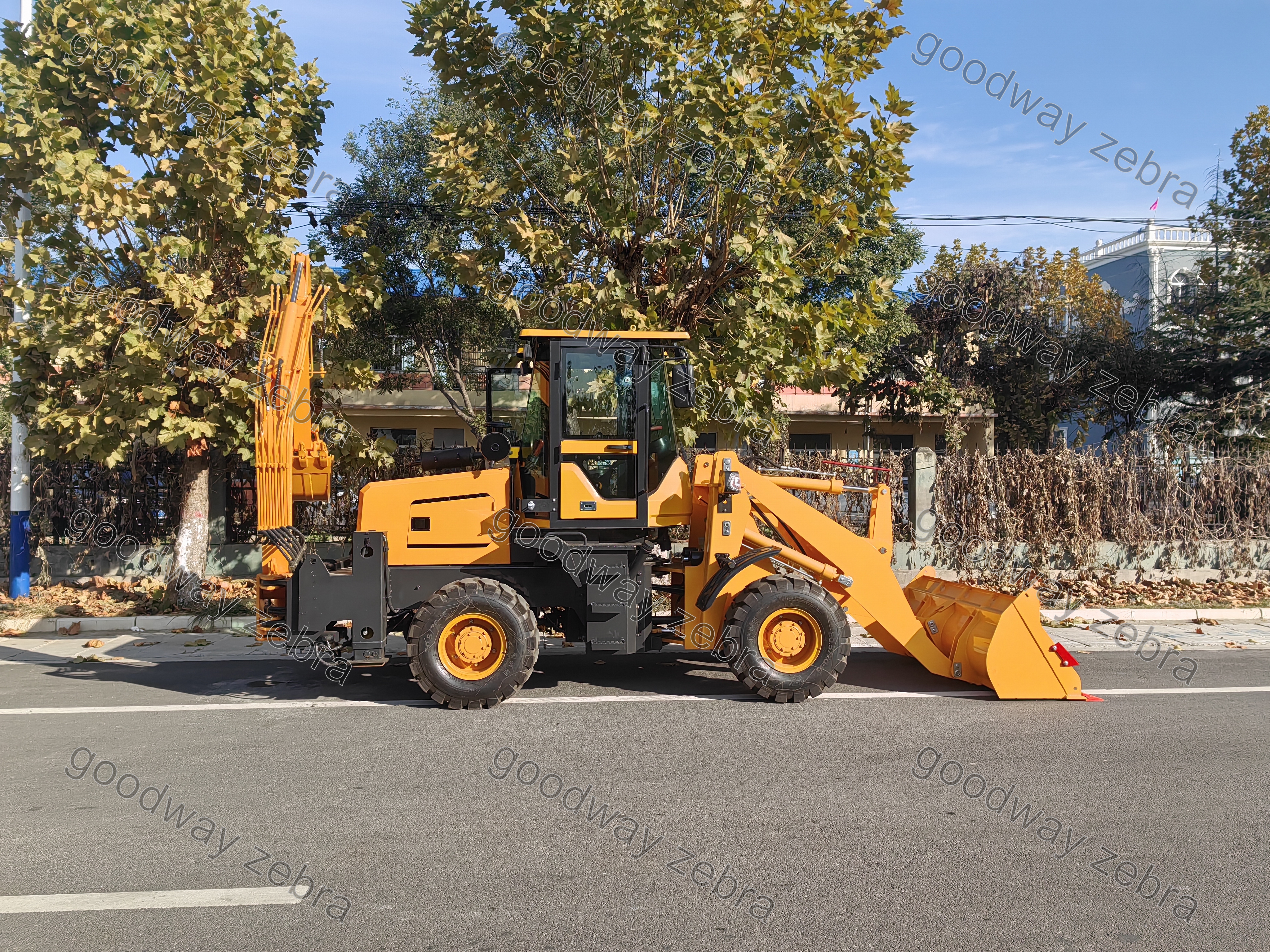

Model GWZ15-26 backhoe loader

Slots provide gas and water dissipationSlots help to increase pad bite and improve air circulationDrilled Holes and Slots create an escape route for debris, dust, gases, and waterSlots clean and de-gl
operating weight: 4800kg
Loaing Bucket Capacity: 0.7m³
Bachoe Bucket Capacity: 0.2 m³
Rated Loading Weight: 2000kg
Max. Digging Depth: 2700mm
Description Services
Description

Product Details


Multiple functions can be implemented on a single device. The front end is equipped with a loading device for shoveling materials, while the rear end of the excavation device can be used to dig soil, rocks, etc.


By replacing different working devices, such as crushing hammers, forks, grabs, etc., the equipment can adapt to a variety of construction needs, including excavation, loading and unloading, etc., which greatly improves the efficiency of the machine, and is suitable for small earthwork engineering, landscaping, agricultural orchard planting, concrete crushing and other construction sites with small space.


It is easy to operate, strong in power, and realizes mutual supply of hydraulic power for excavation and loading. It can be flexibly moved on various terrains, which improves construction efficiency.


The seat rotates to allow the operator to switch between different working ends, and the seat belt increases the safety of operation. The 360° swivel seat with suspension shock absorption improves the comfort of the driver.





Here’s a refined technical summary of the GWZ15-26 Backhoe Loader, optimized for clarity and quick reference:


GWZ15-26 Backhoe Loader – Key Specifications

1. General Specifications

  • Dimensions (L×W×H): 5.8 × 1.85 × 2.75 m
  • Operating Weight: 4,800 kg
  • Rated Load Capacity: 2,000 kg
  • Engine Power: 58 kW (78 hp)
    • Optional: EPA/EU5-compliant engines available.
  • Transmission: Hydraulic
  • Brakes: Air-assisted braking system
  • Max. Travel Speed: 26 km/h
  • Gradeability: 30°
  • Min. Turning Radius: 4.0 m

2. Backhoe Performance

  • Bucket Capacity: 0.2 m³
  • Max. Digging Depth: 2.7 m
  • Max. Digging Height: 4.2 m
  • Max. Digging Radius: 4.6 m
  • Max. Dumping Height: 2.2 m
  • Breakout Force: 28 kN (2,856 kgf)

3. Loader Performance

  • Bucket Capacity: 0.7 m³
  • Max. Dumping Height: 3.3 m
  • Max. Dumping Reach: 0.9 m
  • Breakout Force: 36 kN (3,672 kgf)

4. Hydraulics & Undercarriage

  • Hydraulic Pressure: 16 MPa
  • Tires: 23.5-16 (Pressure: 250 kPa)
  • Wheel Tread: 1.55 m
  • Wheelbase: 2.15 m

5. Comfort & Options

  • Standard: Air-conditioned cabin
  • Flexibility: Optional EPA/EU5 engines for regulated markets.

Advantages & Typical Applications

Versatility: Balanced loader/backhoe design for multi-tasking.
Maneuverability: Compact size (5.8m length) suits urban/confined spaces.
Power-to-Weight Ratio: Efficient 58 kW engine for light-to-medium tasks.
Compliance: Optional low-emission engines for EPA/EU5 regions.

Ideal For:

  • Construction: Trenching, material handling, site prep.
  • Agriculture: Loading feed, light excavation.
  • Utilities: Road maintenance, landscaping.

Comparison Considerations

  • Competitor Models: Compare with JCB 3CX or CAT 420 for similar capacity.

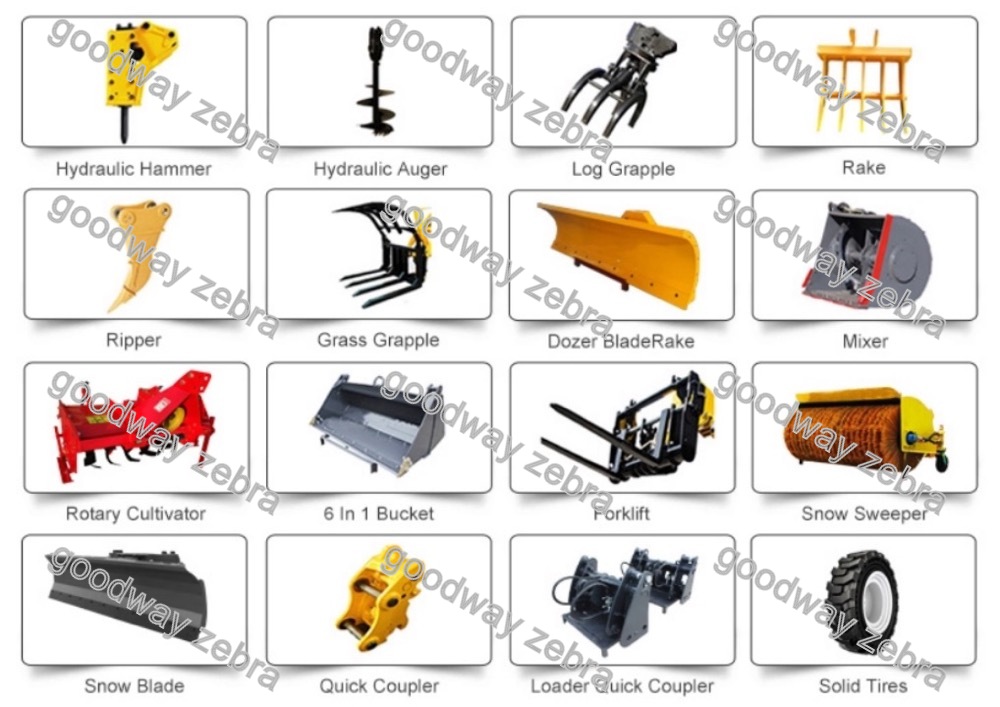

Other Optional Accessories
